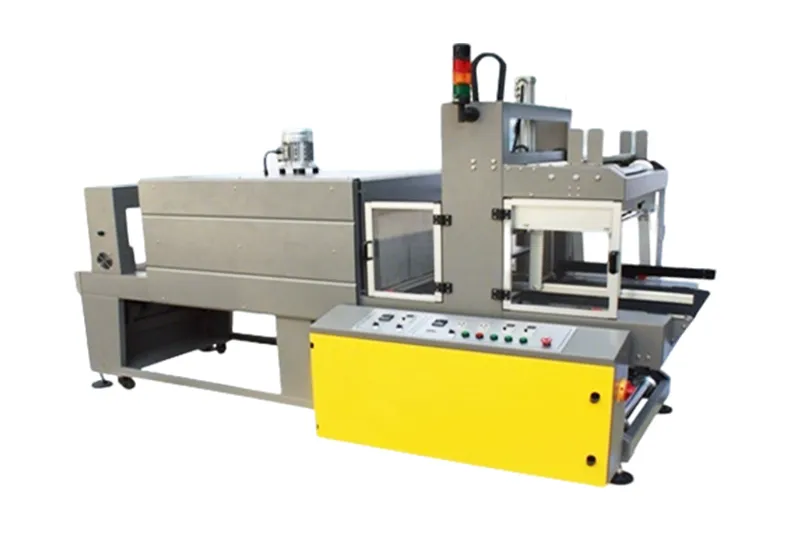

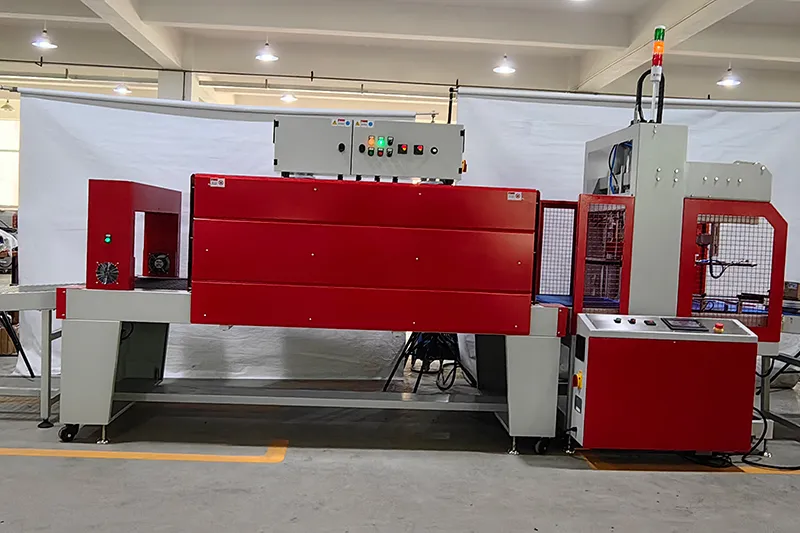

Automatic Shrink Wrapping Machine with Sleeve Sealer
The automatic shrink wrapping machine with sleeve sealer is a packaging machine designed for heavy and bundled products. It performs sleeve-style sealing and heated shrink for items such as water bottles, beverage trays, and boxed products.
Features
- Integrated automatic sealing and shrinking design saves space and simplifies operation
- Conveyor speed is adjustable via variable-frequency drive
- Top and bottom film rolls are driven and controlled by separate motors
- Single-chamber shrink oven features compact structure and uniform heating
- Oven temperature is controlled by PID system with ±1°C accuracy
Applications

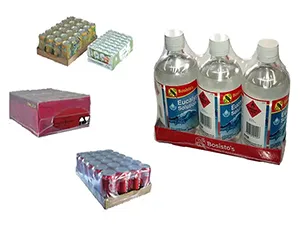

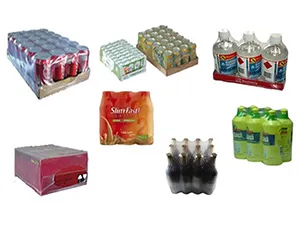

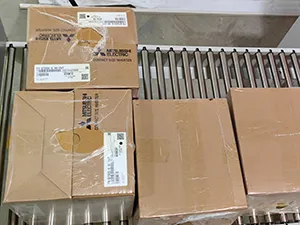

The machine is designed for PE shrink packaging of heavy products, suitable for single or bundled items such as beverage trays, bottles, and boxed goods.
Specifications
| Model | ||
| Power Supply | 380V/3ph, 14 kW | 380V/3ph 14kW |
| Working Air Pressure / Air Consumption | 6 bar, 50L/min | 6 bar, 40L/min |
| Max. Sealing Size | 600mm | 600mm |
| Max. Product Height | 300 mm | 300 mm |
| Max. Capacity | 10 P/min. | 12 P/min. |
| Working Height | 850mm | 850mm |
| Max. Film Roll | W 600- ∅ 350mm X2 | W 600-∅ 350mm X2 |
| Machine Dimensions (L×W×H) | 3110×1360×2410 mm | 3100×1360×2140 mm |
| Packing Size (L×W×H) | 3260×1460×2230 mm | 3260×1460×2230 mm |
| Machine Weight (NW / GW) | 765/1150 | 765/1150 |
