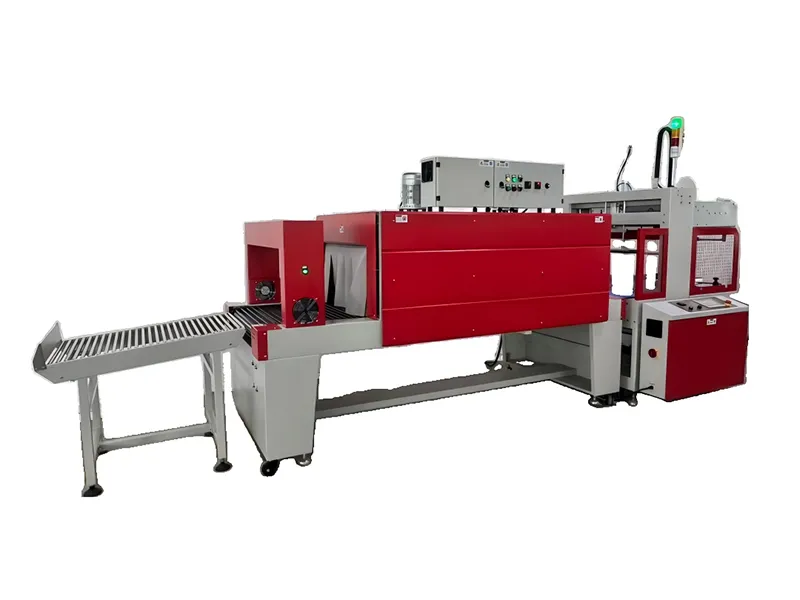

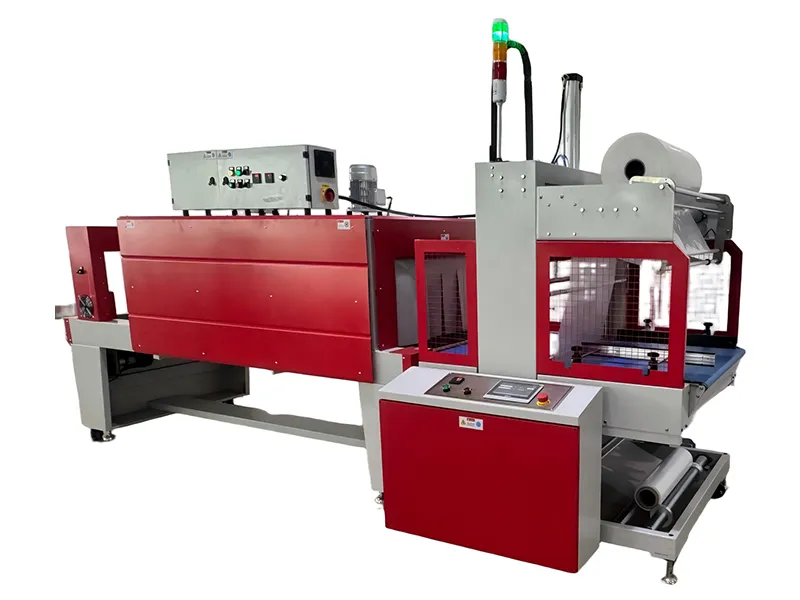

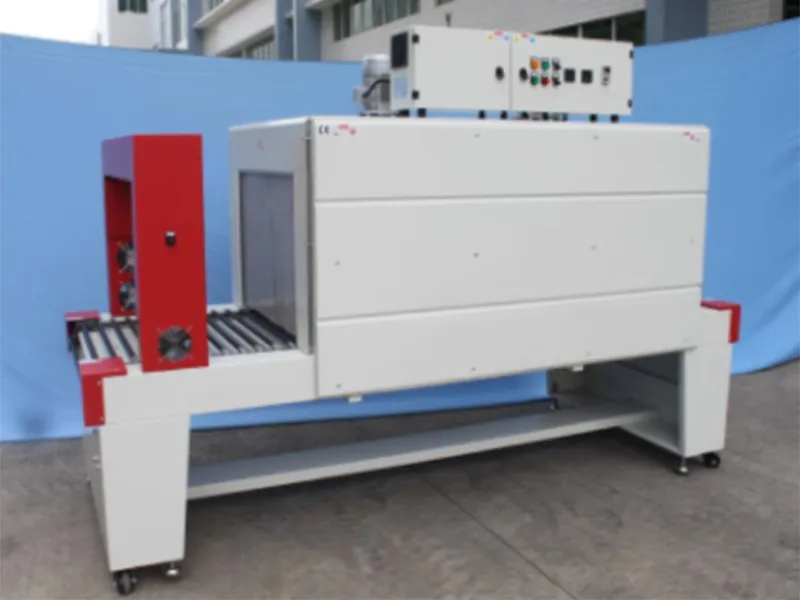

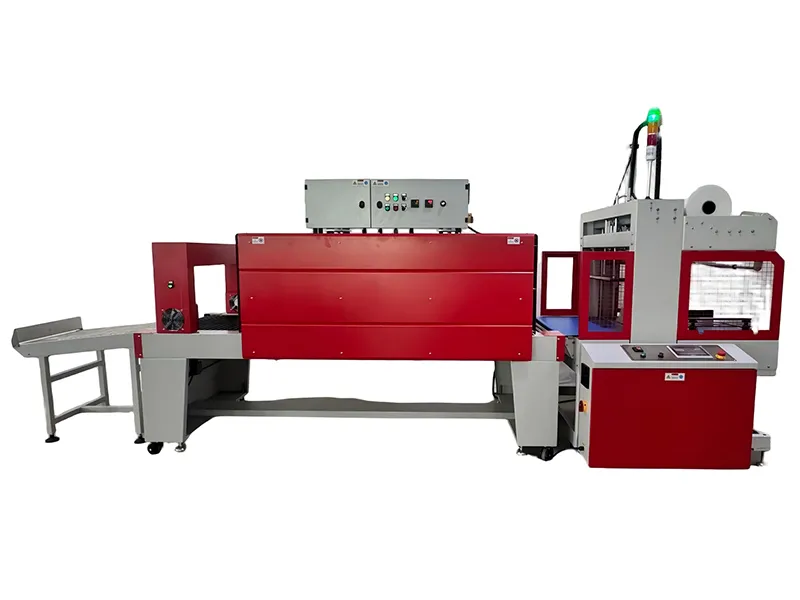

Shrink Tunnel for PE Films
Applications
Shrink tunnel for PE films protects products against dust and moisture while improving appearance.
Features
- Fan at the top for precise stream of hot air
- Roller conveyor
- Variable-frequency drive for stepless conveyor speed adjustment
- Digital temperature control for heating
- Cooling fan at the tunnel exit to cool products
- Metal heating tubes
Specifications
| Model | |||
| Shrink Tunnel Size | L1200×W600×H600mm | L1800×W600×H400mm | L1800×W800×H400mm |
| Machine Dimensions | L2200×970×H1600mm | L2800×W970×1600mm | L2800×W1170×H1600mm |
| Power Supply | 3ph/380V, 12kW | 3ph/380V, 18kW | 3ph/380V, 21kW |
| Max. Conveyor Speed | 15m/min | 20m/min | 20m/min |
| Packing Wooden Case Size | L2160×1060×H1870mm | L1960×1090×H1870mm | L2960×W1280×H1920mm |
| Machine Weight (Net / Gross) | 420/600kg | 640/800kg | 850/1010kg |
