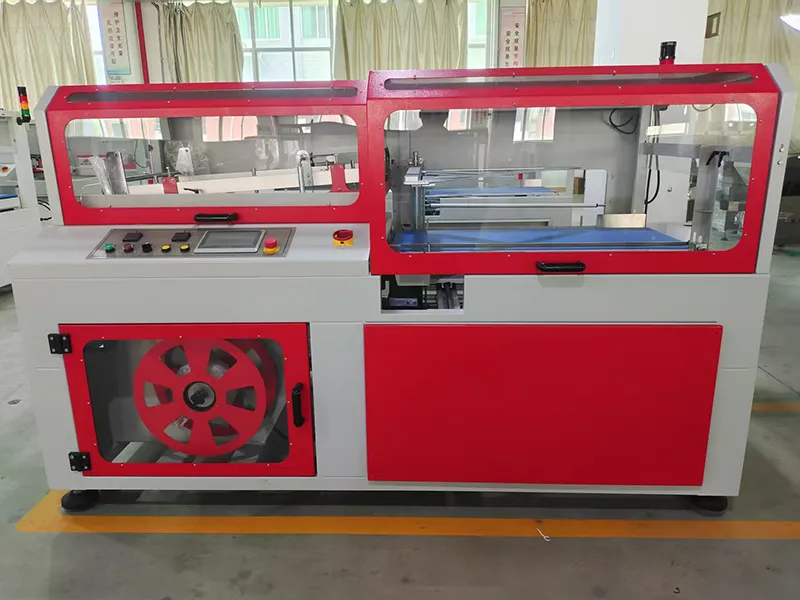

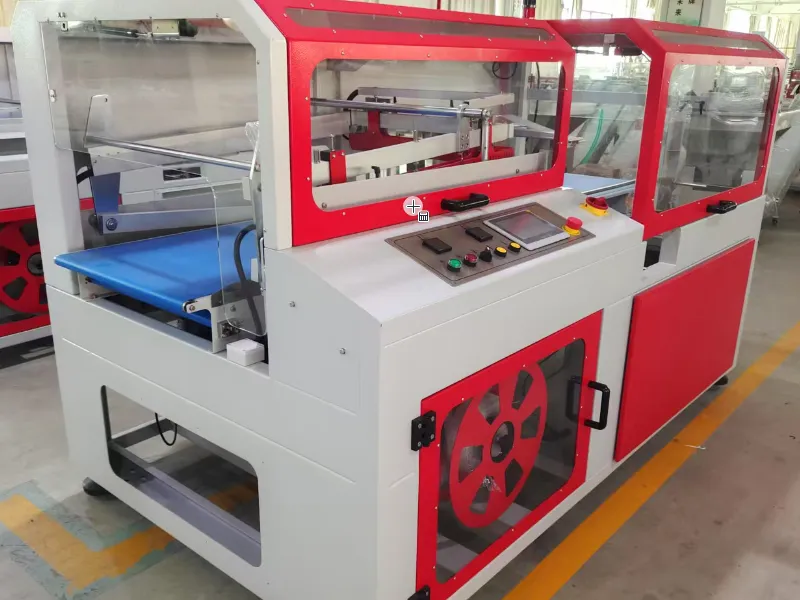

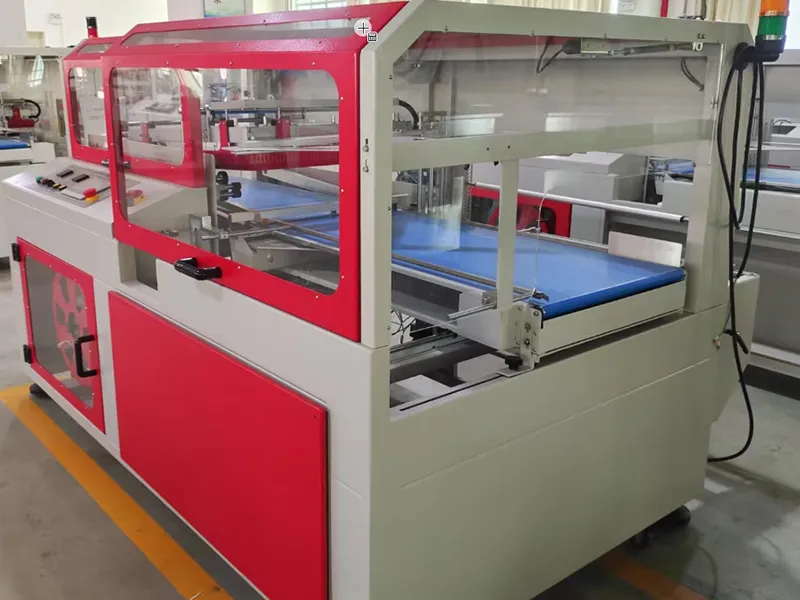

Automatic Shrink Wrapping Machine with L-Bar Sealer
The automatic shrink wrapping machine with L-bar sealer is a heat-shrink sealing system with an L-type automatic sealing and cutting structure. It detects products, adjusts film length, and performs sealing and shrink wrapping. The machine includes independent temperature control, auto-centering, multi-program storage, synchronized high-speed feeding, and supports single or bundled packaging.

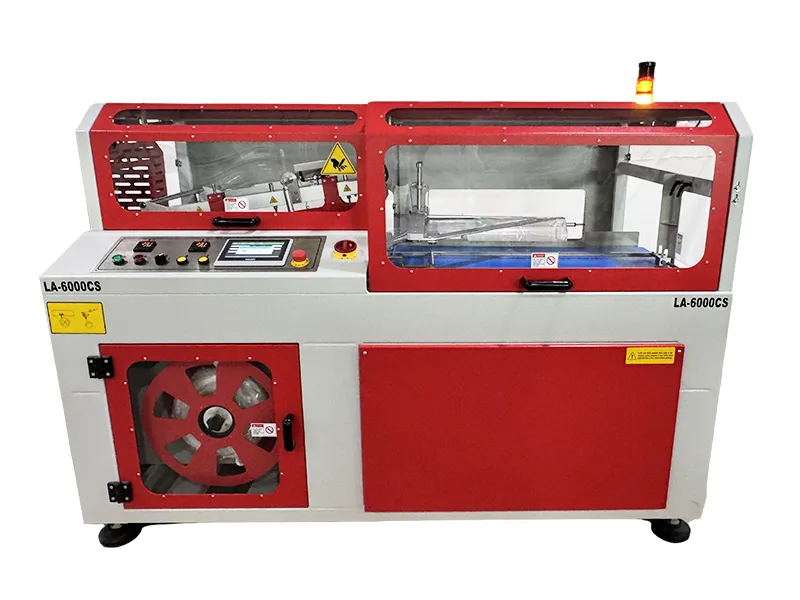

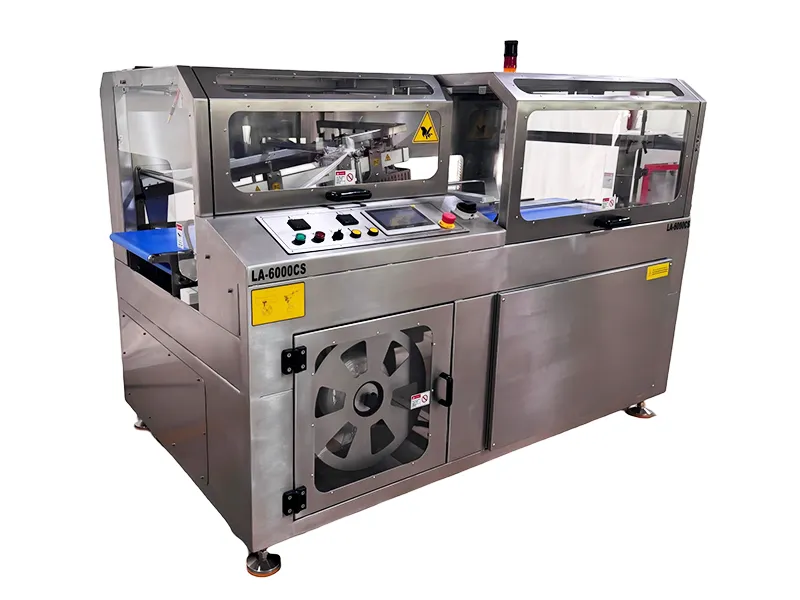

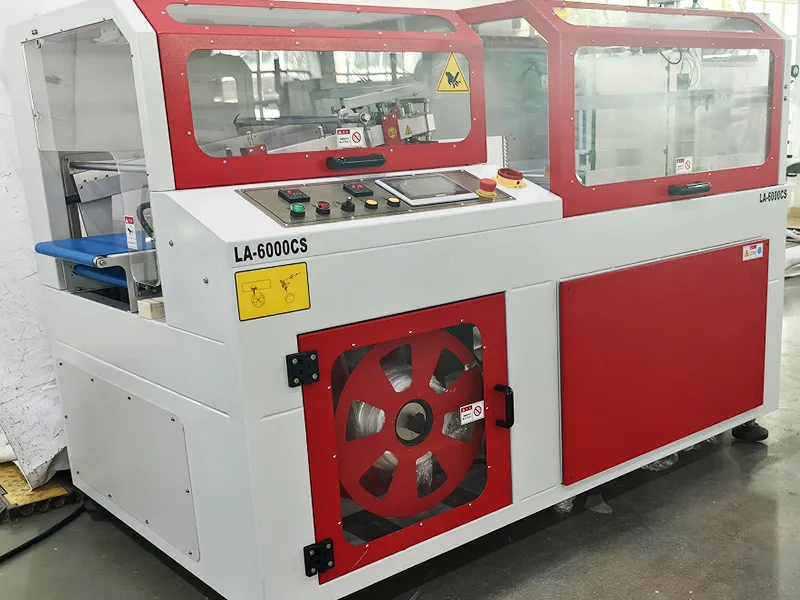

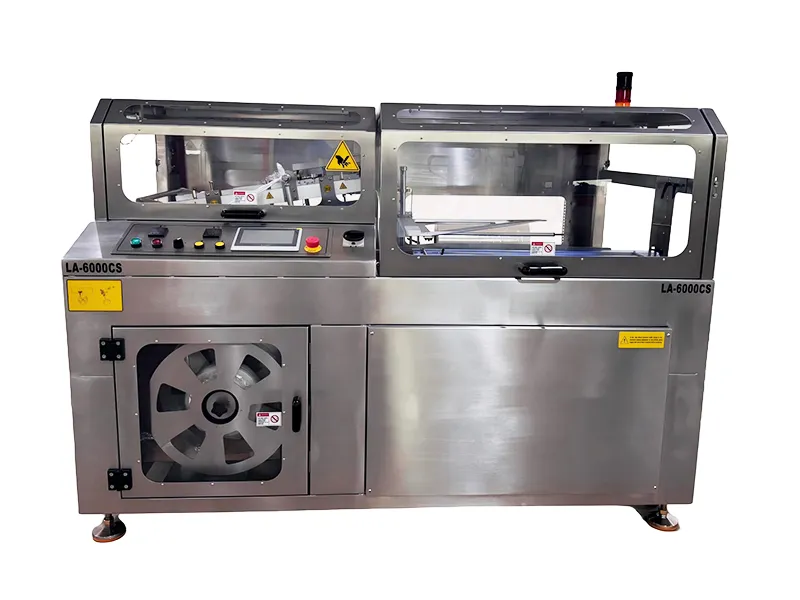

LA-6000CS
- ModelLA-6000/LA-6000CS
- Power Supply220-240 V,1Ph-N PE,50/60 Hz/3200W
- Compressed Air / Air Consumption5 bar,75L per min
- Max. Sealing Size610×480 mm
- Max. Packing Height200 mm (Center Seal) / 120 mm (Non-Center Seal)
- Conveyor Speed10-30 M/min
- Average Output / Hour600-2400
- Max. Film Roll Size / Diameter600-300mmφ
- Machine Dimensions (L×W×H) (mm)2040x1610x1240
- Packing Size (L×W×H) (mm)2160x1730x1490
- Machine Weight (NW / GW)610/850

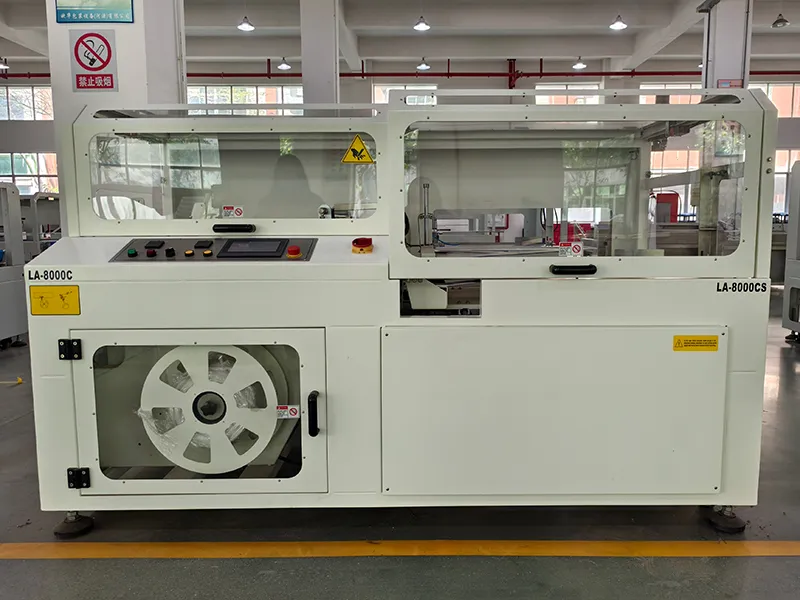

LA-8000CS
- ModelLA-8000/LA-8000CS
- Power Supply220-240 V,1Ph-N PE,50/60 Hz/3200W
- Compressed Air / Air Consumption6 bar,90L per min
- Max. Sealing Size860x670 mm
- Max. Packing Height250 mm (Center Seal) / 150 mm (Non-Center Seal)
- Conveyor Speed10-30 M/min
- Average Output / Hour600-1800
- Max. Film Roll Size / Diameter600-300mmφ
- Machine Dimensions (L×W×H) (mm)2580x1870x1300
- Packing Size (L×W×H) (mm)2700x1990x1550
- Machine Weight (NW / GW)850/1100
Key Advantages
- Stores up to 10 programs
- Vertical and horizontal sealing temperatures are controlled separately
- Supports single or bundled product packaging
- Conveyor speed is adjustable on the touch screen
Options
- Print-mark optical tracking
- Extra infeed and outfeed belt conveyors
- Transition or closely-fitted belt module
Features
- Motor-driven sealing line with automatic center alignment
- Intelligent product detection system and bag-length measurement
- Output counter with total-quantity setting
- PLC with color touchscreen system
- Supports PE, POF, center-fold film
- Compatible shrink film thickness within 10–50 μm
- CE compliant
