Shrink Tunnel for POF Film (High Efficiency)
TSS-1845
- ModelTSS-1845
- Shrink Tunnel SizeL1800×W450×H300mm
- Machine DimensionsL2440×W1080×H300mm
- Power Supply3Ph/380V, 50HZ, 18kW
- Packing Wooden Case SizeL2520×W1180×H1400mm
- Machine WeightNW: 580kg, GW: 720kg

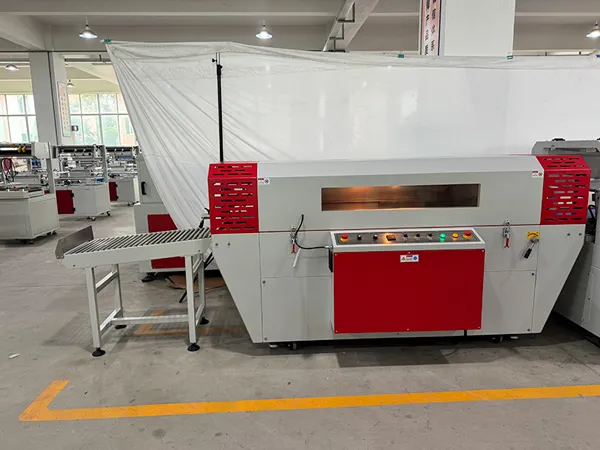

TLA-1245
- ModelTLA-1245
- Shrink Tunnel SizeL1200×W450×H300mm
- Machine DimensionsL1840×W1080×H1250mm
- Power Supply3Ph/380V, 50HZ, 9kW
- Packing Wooden Case SizeL1920×W1180×H1400mm
- Machine WeightNW: 470kg, GW: 570kg
Applications

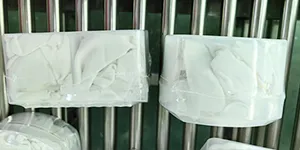

Shrink wrap products use POF film to create a tight outer layer that helps protect against dust and moisture, while keeping the packaged item neat.
Options
- Machine frame made of stainless steel
- Flip-open tunnel hood
- Cooling fan at discharge
- Fixed roller conveyor
Features
- Integrated hot-air circulation system that ensures fast heating
- Solid-state relay with PID temperature control
- Metal heating tubes
- Drawer-style heater designed for checking and replacing heating tubes
- Conveyor speed controlled by frequency inverter
- Solid movable rollers with high-temperature silicone sleeves
- Airflow speed and volume adjusted by frequency-controlled fan
- Dual-side adjustable hot-air direction
- 100mm insulation layer reduces heat loss and uses lower power
