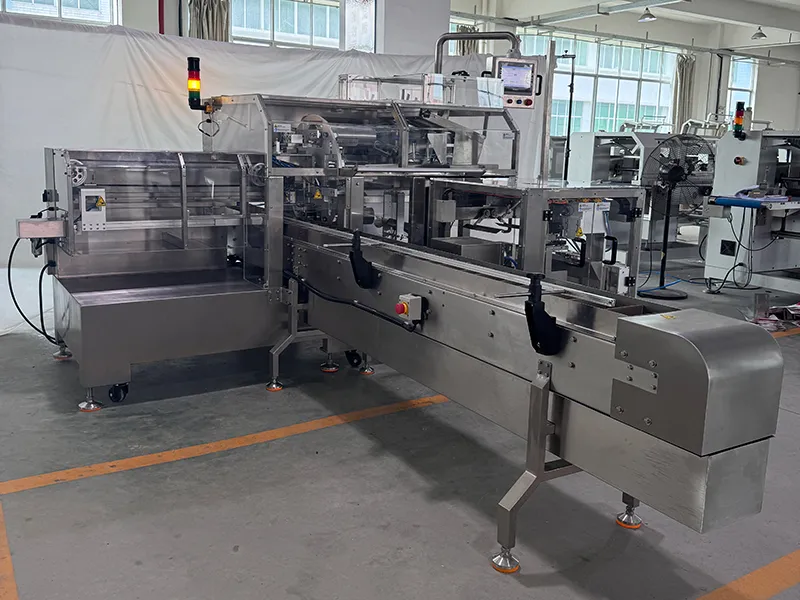

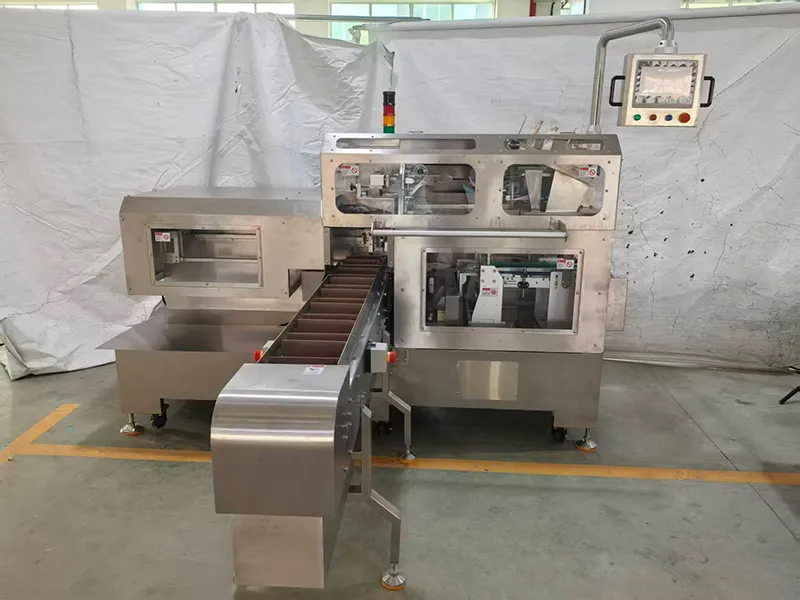

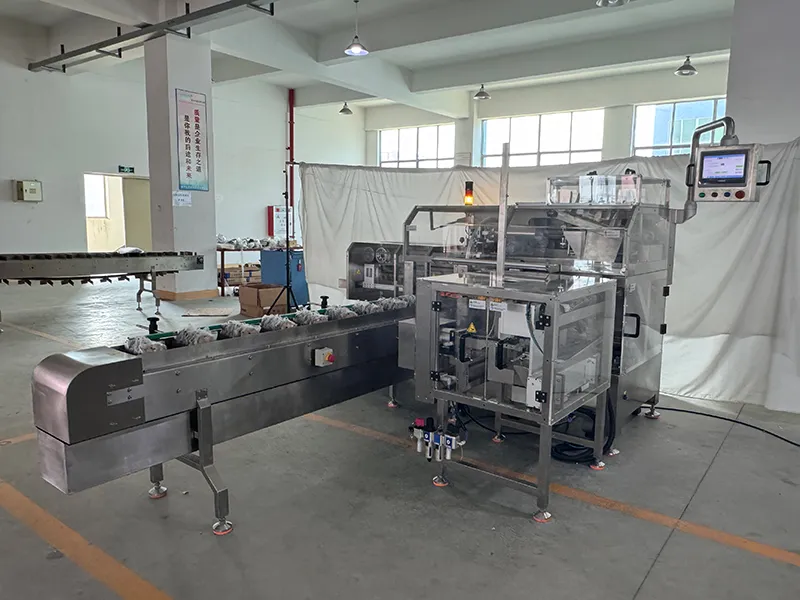

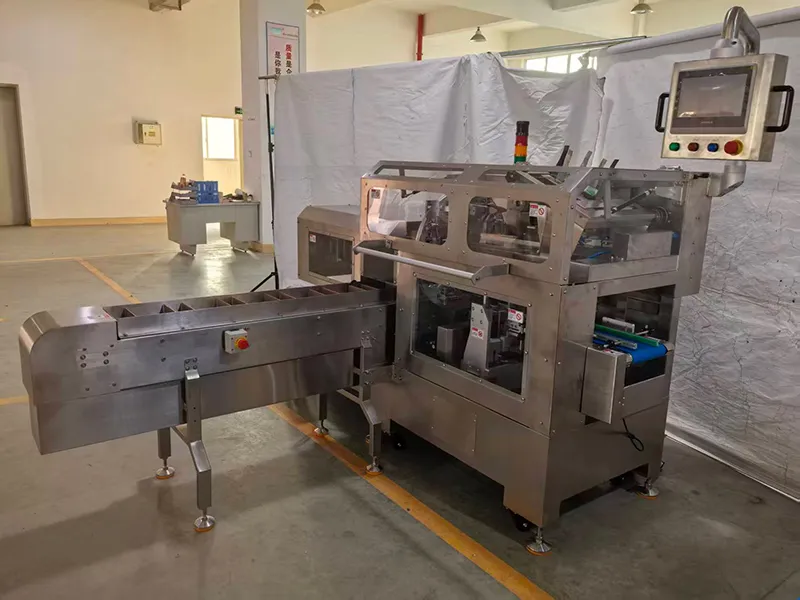

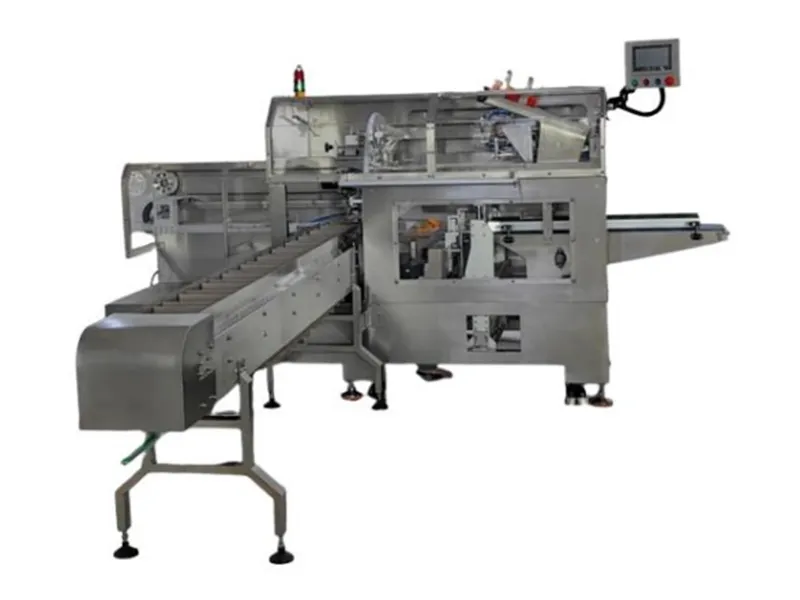

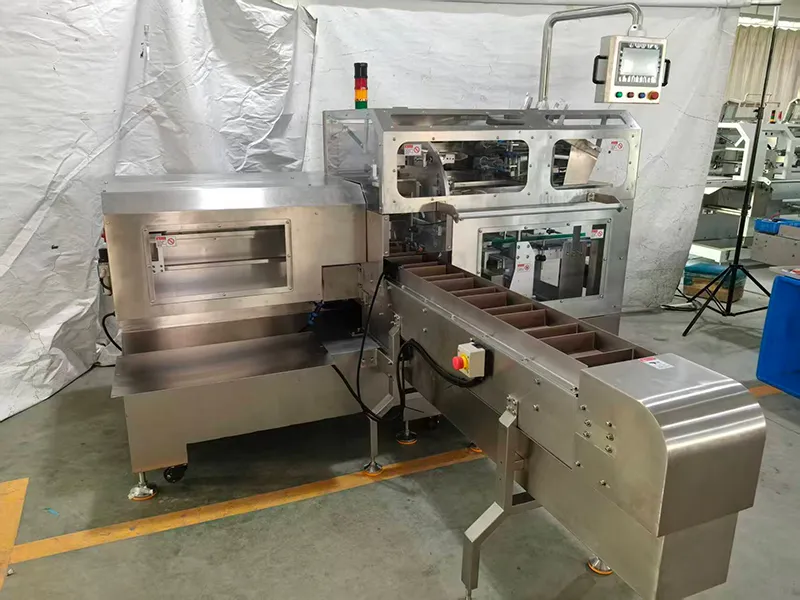

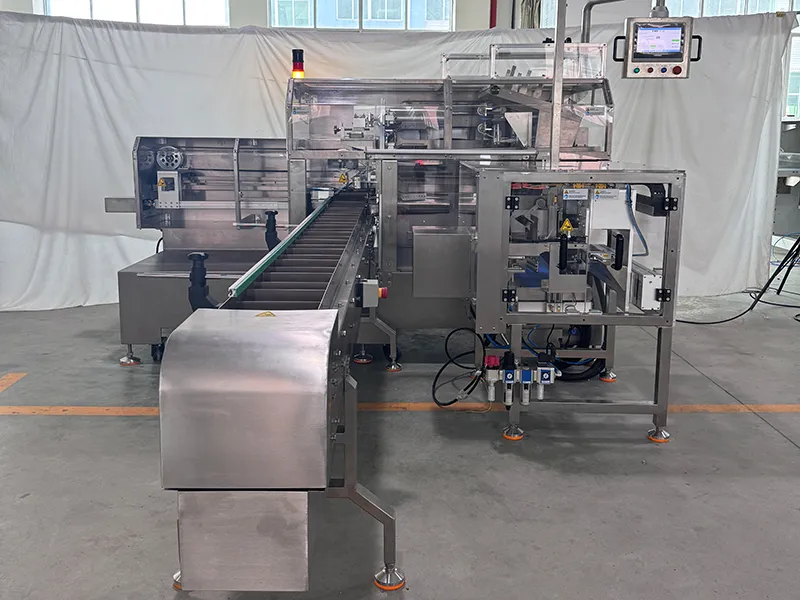

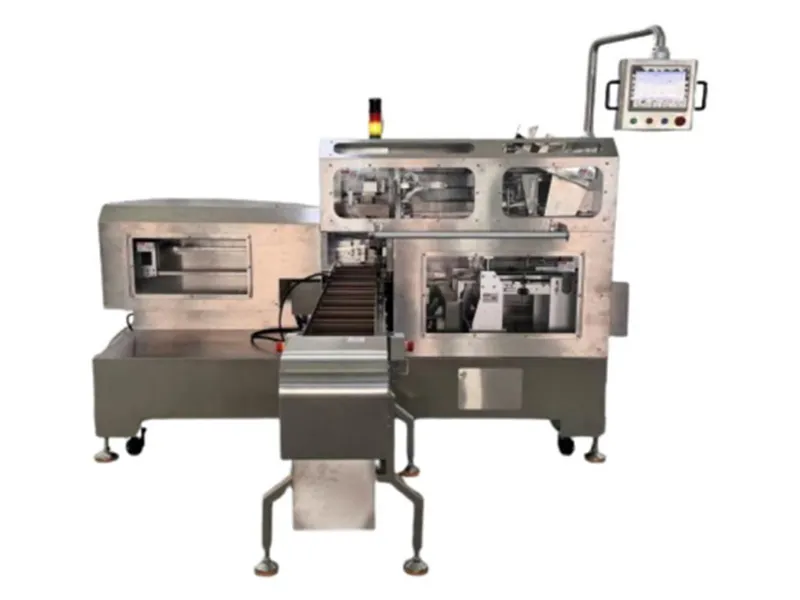

Automatic Bag-Opening & Inserting Machine
APTD-150
- ModelAPTD-150
- Packing Speed25–30 bags/min (with sealing)
Up to 35 bags/min (without sealing) - Compressed Air0.6-0.8MPa
- Applicable Bag SizeL: 200-250mm, W: 120-150mm, H: 0-30mm.
- Power Consumption7kW
- Power Supply1ph/220V, 50Hz
- Product TypeSingle product per bag, or multiple products per bag
- Machine DimensionsL2588×W2523×H1991mm
- Bag MaterialOPP / CPP / PE laminated film Thickness: 45–60 μm
- Machine Weight450kg
APTD-200
- ModelAPTD-200
- Packing Speed25–30 bags/min (with sealing)
Up to 35 bags/min (without sealing) - Compressed Air0.6-0.8MPa
- Applicable Bag SizeL: 170-300mm, W: 130-190mm, H: 0-50mm.
- Power Consumption7kW
- Power Supply1ph/220V, 50Hz
- Product TypeSingle product per bag, or multiple products per bag
- Machine DimensionsL3015×W3530×H1513mm
- Bag MaterialOPP / CPP / PE laminated film Thickness: 45–60 μm
- Machine Weight500kg
Features
- Automatic pouch feeding, pouch opening, product insertion, sealing, and finished-product discharge
- Supports solid products in premade pouches, including gusseted and accordion-style pouches
- Servo-driven control with HMI touchscreen interface
- Integrated product conveyor module for inline connection
- Optical sensor verification with intelligent algorithm
- The machine is built with a 304 stainless steel structure, meeting the requirements of the food industry

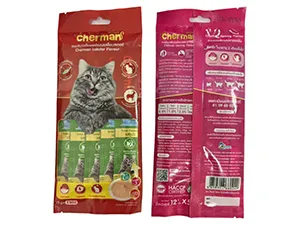

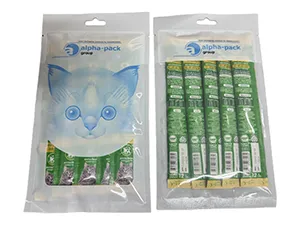

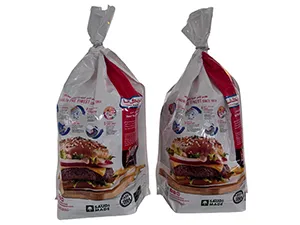

Pouch types supported
Premade pouches, optimized for accordion-style gusset pouches.
