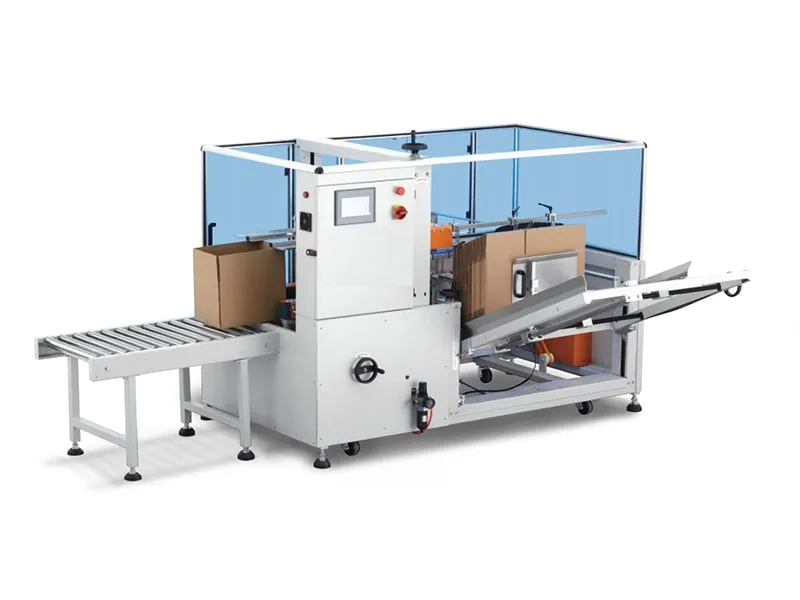

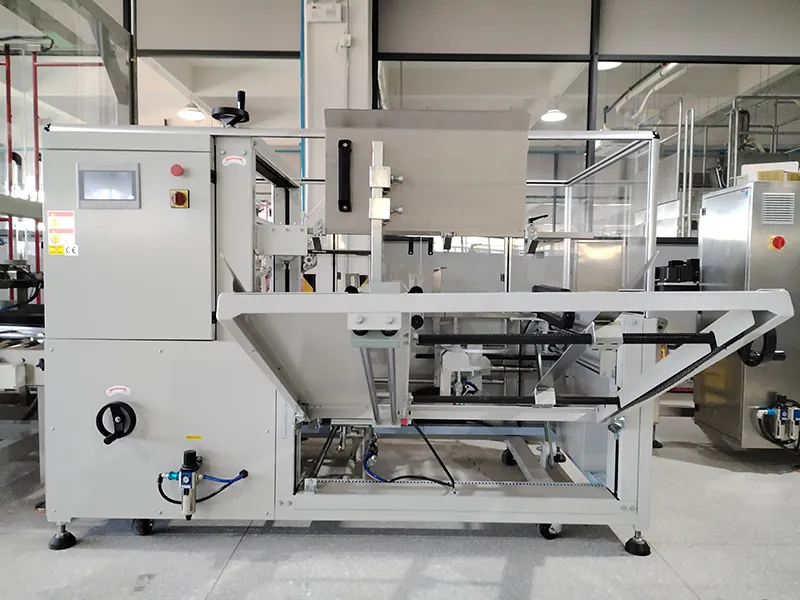

    Automatic case erector opens and forms cartons and seals the bottom flaps with tape in one sequence.

    • Uses a vertical board storage system, allowing additional carton blanks nonstop replenishment at any time
    • Designed for continuous production using one carton size at a time; box dimension changeovers are completed through manual adjustment in approximately 2 minutes
    • Equipped with a transparent protective guard, opening the guard door triggers automatic stop for operator safety
    • Supports both standalone operation and integration with automated packaging lines
    Leave a Message
    Specifications
    Model APKX-400 APKX-400H18
    Carton Erecting Speed 12 cartons/min 18 cartons/min
    Carton Storage Capacity 100pcs (1000mm) 100pcs (1000mm)
    Applicable Carton Size L200-450, W150-400, H100-350mm L200-450, W150-400, H100-350mm
    Power Supply 1Ph/220V, 50HZ, 200W 1Ph/220V, 50HZ, 200W
    Compressed Air 6kg/cm² 6kg/cm²
    Applicable Tape Width W48, 60, or 75 mm (Select one) W48, 60, or 75 mm (Select one)
    Machine Dimensions L2000×W1900×H1450mm L2400×W2050×H1450mm
    Machine Weight 450kg 550kg
    • Our Brands
    • Our Brands
    • Our Brands
    • Our Brands
    • Our Brands
    • Our Brands
    • Our Brands

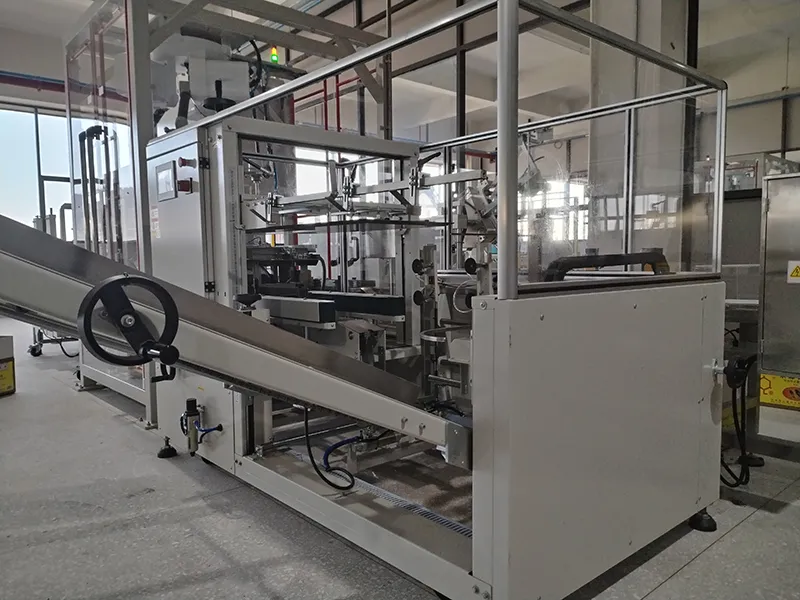

    The automatic case erector stores carton blanks vertically and includes an adjustable storage and forming system. It supports carton dimensions within the range of 200-450 mm in length, 150-400 mm in width, and 100-350 mm in height. Size changeovers are completed by manual adjustment to match production requirements and container intervals.
