Measurement System

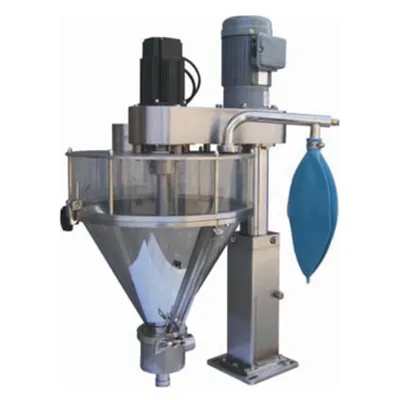

Auger Filler

Applications
The auger filler is engineered for powder and ultra-fine powder materials. It is suitable for the automated packaging of products including milk powder, rice flour, nutritional foods, solid beverages, food additives, monosodium glutamate, seasonings, glucose, dyes, fragrances, and similar powder-based materials.

  • Model: APF-500A
  • Auger Diameter: ⌀ 22-46 (mm)
  • Filling Range: 5-500g
  • Packing Speed: 15-80 bags/min
  • Filling Accuracy: ≤0.3-1%
  • Total Power: 1.4kW
  • Hopper Capacity: 26L
  • Model: APF-1000A
  • Auger Diameter: ⌀ 28-84 (mm)
  • Filling Range: 10-2000g
  • Packing Speed: 25-80 bags/min
  • Filling Accuracy: ≤0.3-1%
  • Total Power: 1.9kW
  • Hopper Capacity: 50L

Auger Filler
  • Applications
    Suitable for the filling and packaging of a wide range of liquid products, including sauce-based products and cosmetic formulations.
  • Filling Range
    3-5000 ml, requiring replacement with the appropriate model depending on the desired capacity range.
  • Adjustment Method
    The piston pump utilizes mechanical adjustment, while the cam rotor pump employs electronic adjustment.

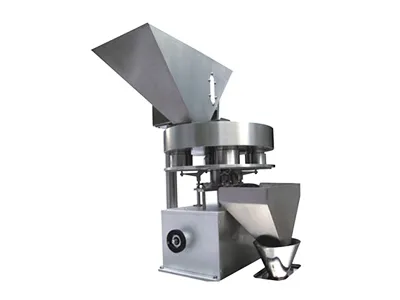

Auger Filler
  • Applications
    Suitable for the automated weighing of small granular materials and free-flowing powder materials, including sugar, seasonings, and seeds.
  • Single Weighing Range
    10-1000g requiring replacement of the measuring cup with the appropriate

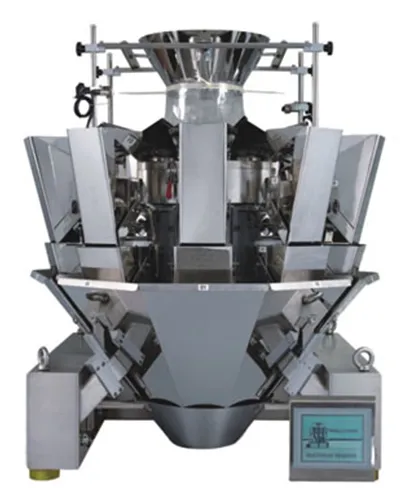

Auger Filler

Applications
Suitable for the quantitative filling of irregular materials in granular, flake, strip, and other non-uniform forms, including puffed foods, confectionery, chocolate, biscuits, preserved fruits, melon seeds, potato chips, peanuts, mixed nuts, dumplings, cereals, pet food, hardware components, plastic parts, and similar irregular solid materials.

Model Heads Levels Hopper Capacity Combination Weight Weighing Accuracy Max. Speed
MHW-A9 9 1 1.8L 15-500g 1-3g 45 pouches/min
MHW-A10 10 2 1.6/2.5L 10-800g 0.2-1g 65 pouches/min
MHW-AS10 10 2 0.5L 3-200g 0.3-2.5g 65 pouches/min
MHW-AM10 10 2 5L 150-1500g 0.5-3.0g 65 pouches/min
MHW-A14 14 2 1.6/2.5L 10-1500g 0.2-1g 120 pouches/min
MHW-AS14 14 2 0.5L 3-200g 0.1-1.0g 120 pouches/min
MHW-AM14 14 2 5L 100-3000g 0.5-3.0g 80 pouches/min
MHW-A16-I1 16 2 1.6L 10-300g 0.5-2g 60×2 pouches/min
MHW-A20-II 20 2 1.6L 10-800g 0.1-1g 60×2 pouches/min

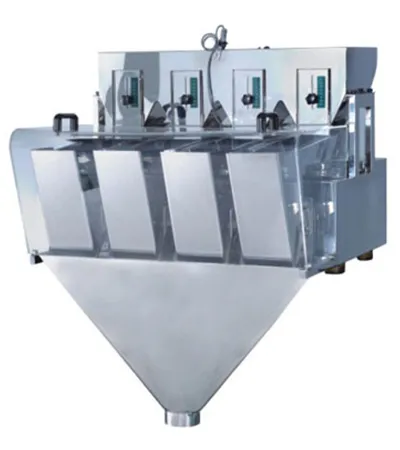

Auger Filler

Applications
Suitable for the automated weighing of small granular materials and free-flowing powder substances, including sugar, seasonings, seeds, and other similar materials.

Model Heads Levels Hopper Capacity Combination Weight Weighing Accuracy Max. Speed
MHW-04L 4 1 3L 20-2000g 0.2-2g 50 pouches/min
MHW-04S 4 1 0.5L 5-200g 0.2-1g 60 pouches/min
MHW-02L 2 1 15L 500-10000g 1-10g 20 pouches/min
MHW-02S 2 1 4.5L 100-3000g 0.5-3.0g 30 pouches/min
MHW-01S 1 1 4.5L 100-1500g 1.0-3.0g 15 pouches/min
Automatic Packaging Solutions Since 1991

The company owns production bases in China and Europe totaling more than 80,000 m² of manufacturing space, with full-process capabilities covering equipment design, parts machining, final assembly, installation, commissioning, transport, and packaging. With decades of industry experience and strong independent R&D, Alpha-Pack is a trusted manufacturer of multiple packaging machine categories in China.

  • Our Brands
  • Our Brands
  • Our Brands
  • Our Brands
  • Our Brands
  • Our Brands
  • Our Brands

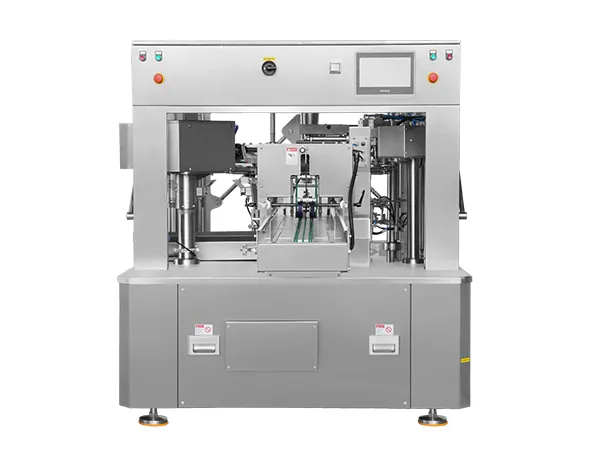

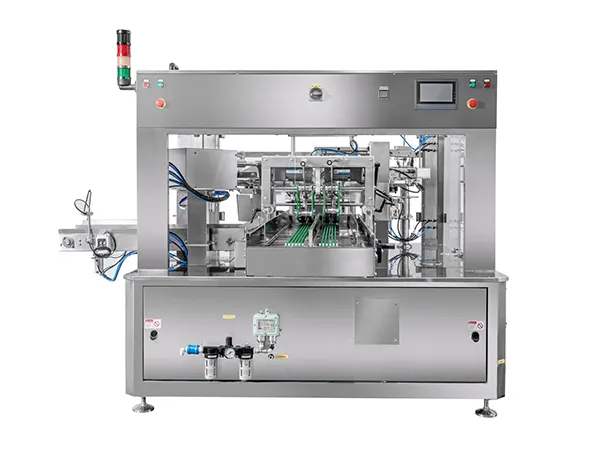

Automatic premade pouch packaging machine features an intelligent color touchscreen system and modular design, enabling adaptation to a variety of bag sizes, with lengths ranging from 150-350 mm and widths from 100-250 mm. It allows rapid size change while minimizing space requirements.

When filling powder products with an automatic filling machine, it is essential to select the appropriate filling mechanism, such as a screw filler or cup filler, to ensure precise measurement. Additionally, vibration and vacuum systems help reduce dust leakage, thereby improving both packaging efficiency and quality.

Paste filling machine is equipped with an intelligent control system and a downward-filling mechanism. An optional paste filling device ensures liquid level detection during the filling process, preventing overflow and reducing material waste.

Filling machines are equipped with multiple specialized filling devices and distributors capable of accommodating granulated products of various particle sizes. Combined with adjustable vibration and feeding systems, this ensures fast filling.
