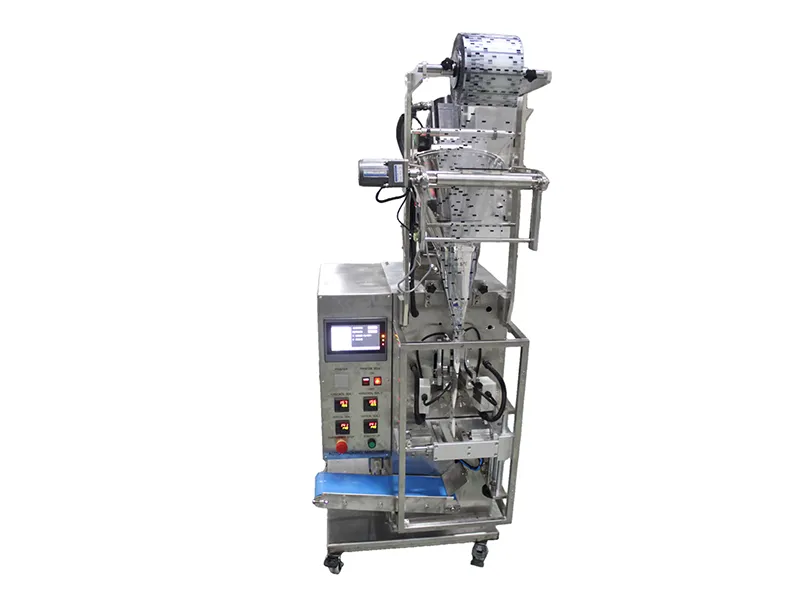

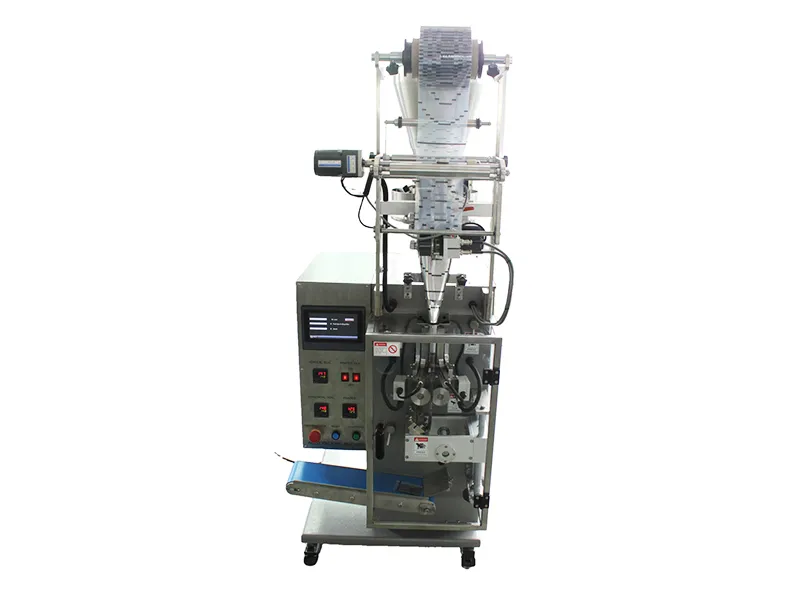

VFFS Packaging Machine for Small Bags, Single Lane
The VFFS machine for sachets is a flexible filling machine that automates the entire process, including measuring, bag forming, filling, and sealing. It supports three-side seal, four-side seal, and back-seal sachets, and is compatible with a range of materials.
The vertical form fill seal machine is an economical, automatic packaging machine that is designed for small bag packaging. It is suitable for packaging a range of products, including liquids, powders, granules, tablets, and screws.
Features
- The machine performs product metering, bag forming, sealing, and shaping of special bag types
- Interchangeable molds allow the creation of customed pouches according to client’s visions
- High-sensitivity photoelectric sensors track and position printed marks, ensuring branding graphics with color registration marks

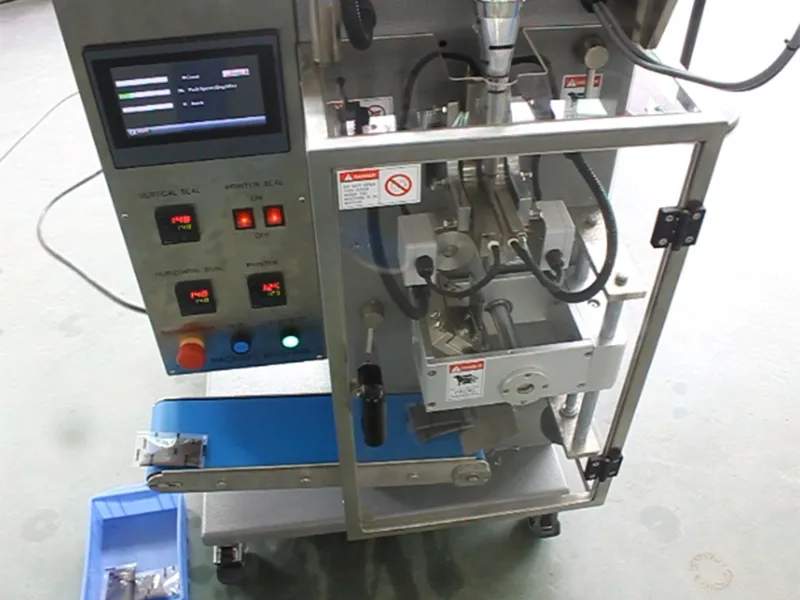

- PLC with color touchscreen system allows easy setup and adjustment of packaging parameters. It provides intuitive production display, automatic fault alarms, self-stop, and self-diagnosis functions
Options
- Date printer
- Fixed-bag cutting device
- Stainless steel machine frame
Optional Sealing Methods

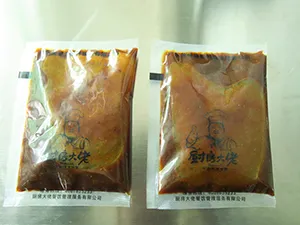

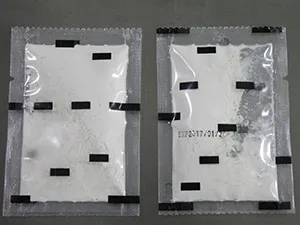

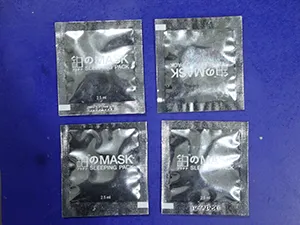

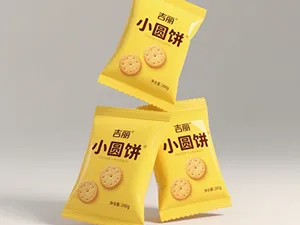

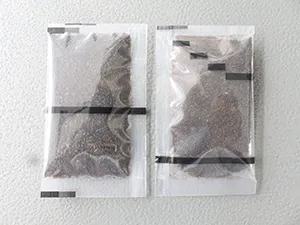

- Three-side seal, four-side seal, back seal
Specifications
| Model | Applicable Product | Volume Range (ml) | Bag Length (mm) | Bag Width (mm) | Production Speed (BPM) | Filler Type |
| Granules | A:1-10 B:5-50 | 30-120 | 30-85 | 50-100 | Measuring Cup | |
| Liquid | 3-50 | 30-120 | 30-85 | 30-60 | Liquid Pump | |
| Powder | 3-50 | 30-120 | 30-85 | 30-60 | Auger Filler | |
| Tablets/Pills | 3-50 | 30-120 | 30-85 | 10-60 | Tablet Feeder | |
| Hardware (Screws, etc.) | 3-50 | 30-120 | 30-85 | 10-60 | Vibratory Feeder |
