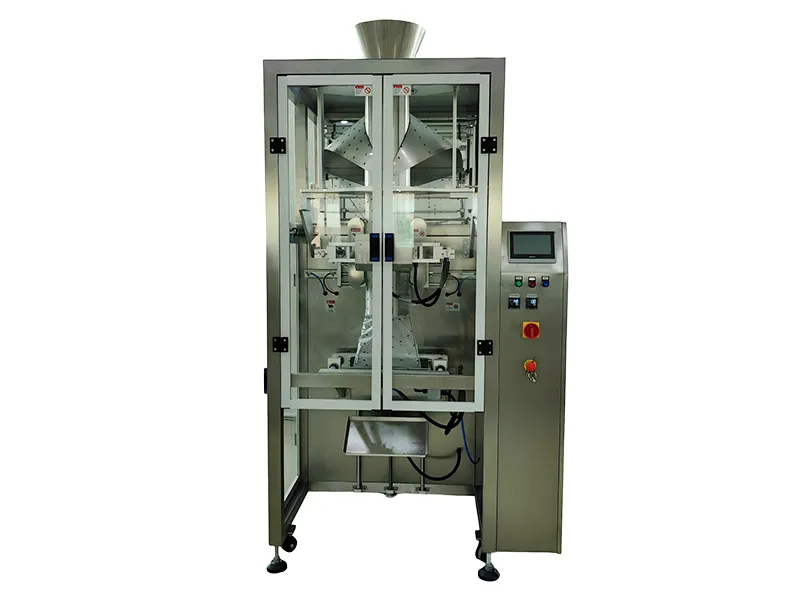

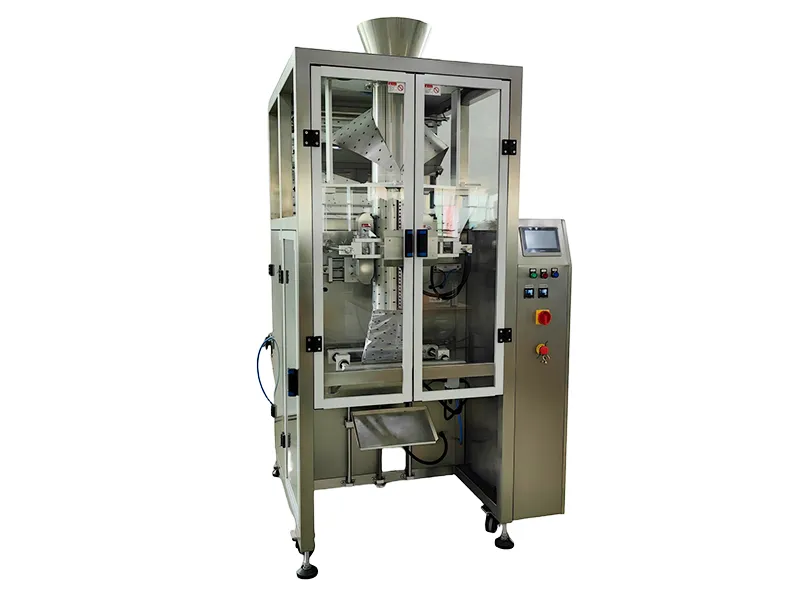

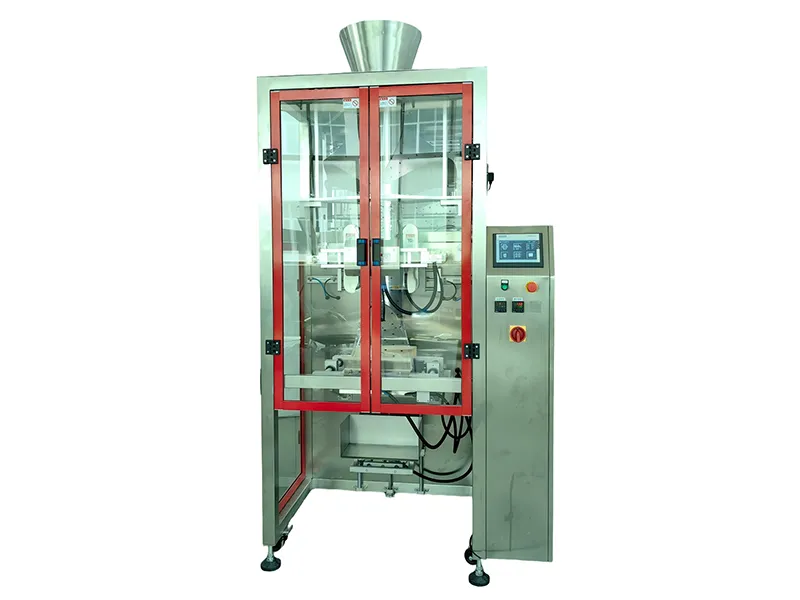

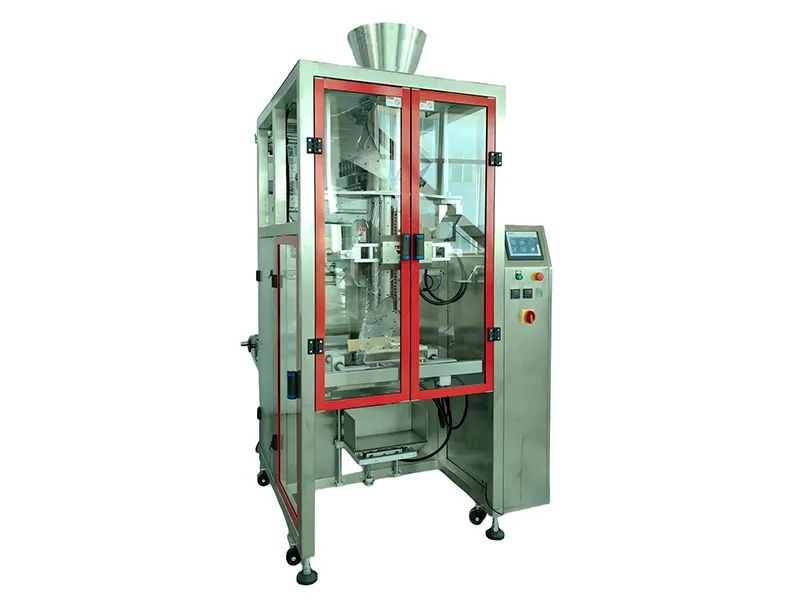

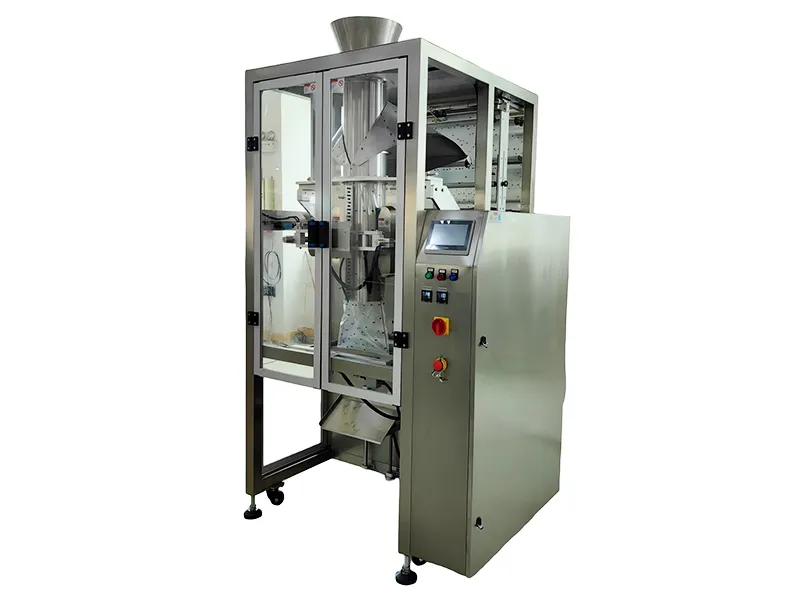

VFFS Packaging Machine for Large Bags, Single Lane

The VFFS Packaging Machine for large bags is a bag filling and sealing system that automates the process of bag feeding, metering, bag forming, back sealing, and cutting for large-capacity materials. It features servo-driven film pulling, high-sensitivity photoelectric sensors, and precise PID temperature control as well as ensures stable bag formation, pattern alignment, and secure seals.

VFFS Packaging Machine for Large Bags, Single Lane
  • VFFS Packaging Machine for Large Bags, Single Lane
  • VFFS Packaging Machine for Large Bags, Single Lane
  • VFFS Packaging Machine for Large Bags, Single Lane
  • VFFS Packaging Machine for Large Bags, Single Lane
  • VFFS Packaging Machine for Large Bags, Single Lane
    • ModelPM-720
    • Max. Volume (ml)4000
    • Bag Length (mm)200-500
    • Bag Width (mm)150-350
    • Max. Film Width (mm)320-730
    • Packing Speed (BPM)10-35
    • Power Supply220V/1Ph, 3.5kW
    Leave a Message
    VFFS Packaging Machine for Large Bags, Single Lane
  • VFFS Packaging Machine for Large Bags, Single Lane
  • VFFS Packaging Machine for Large Bags, Single Lane
  • VFFS Packaging Machine for Large Bags, Single Lane
    • ModelPM-620
    • Max. Volume (ml)3000
    • Bag Length (mm)120-450
    • Bag Width (mm)110-300
    • Max. Film Width (mm)240-630
    • Packing Speed (BPM)10-45
    • Power Supply220V/1Ph, 3.2kW
    Leave a Message
    VFFS Packaging Machine for Large Bags, Single Lane
  • VFFS Packaging Machine for Large Bags, Single Lane
  • VFFS Packaging Machine for Large Bags, Single Lane
  • VFFS Packaging Machine for Large Bags, Single Lane
  • VFFS Packaging Machine for Large Bags, Single Lane
    • ModelPM-520
    • Max. Volume (ml)2000
    • Bag Length (mm)80-390
    • Bag Width (mm)90-250
    • Max. Film Width (mm)200-530
    • Packing Speed (BPM)15-50
    • Power Supply220V/1Ph, 2.8kW
    Leave a Message
    VFFS Packaging Machine for Large Bags, Single Lane
  • VFFS Packaging Machine for Large Bags, Single Lane
  • VFFS Packaging Machine for Large Bags, Single Lane
  • VFFS Packaging Machine for Large Bags, Single Lane
  • VFFS Packaging Machine for Large Bags, Single Lane
    • ModelPM-420
    • Max. Volume (ml)1000
    • Bag Length (mm)80-300
    • Bag Width (mm)80-200
    • Max. Film Width (mm)180-430
    • Packing Speed (BPM)15-60
    • Power Supply220V/1Ph, 2.5kW
    Leave a Message
    Features
    • The machine performs bag feeding, precise metering, filling, bag forming, sealing, cutting, and date printing
    • Servo-driven dual-belt film pulling ensures operation stability
    • High-sensitivity photoelectric sensors track and position printed marks, achieving complete branding graphics with color registration marks
    • PLC with color touchscreen system allows easy setup and adjustment of packaging parameters. The system displays production information intuitively and includes automatic fault alarm, self-stop, and self-diagnosis functions, making operation safe and maintenance convenient
    • PID digital temperature control temperature within ±1°C
    • Complies with CE safety standards

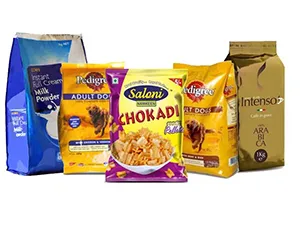

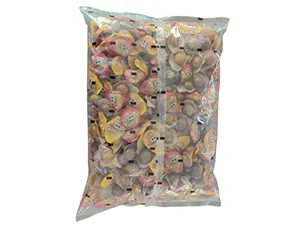

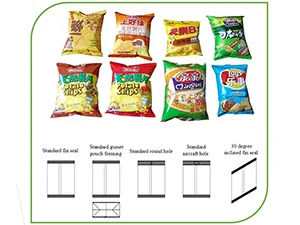

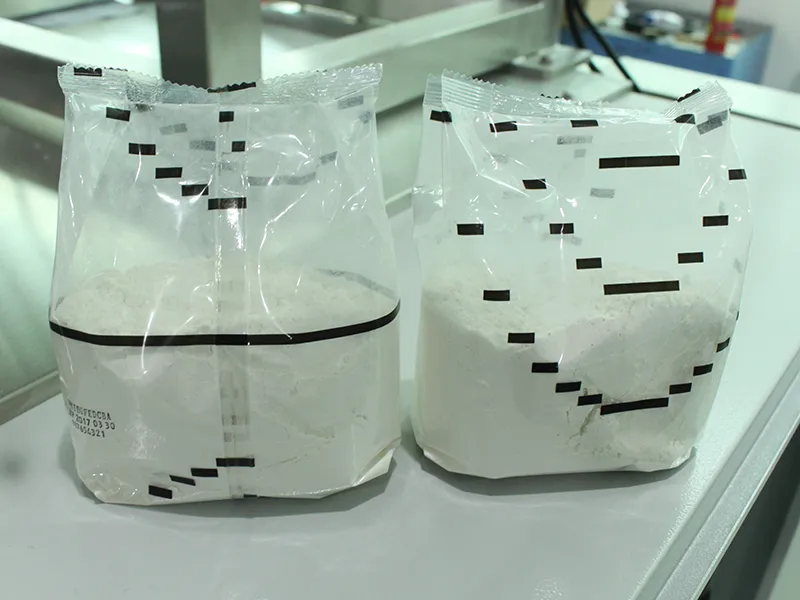

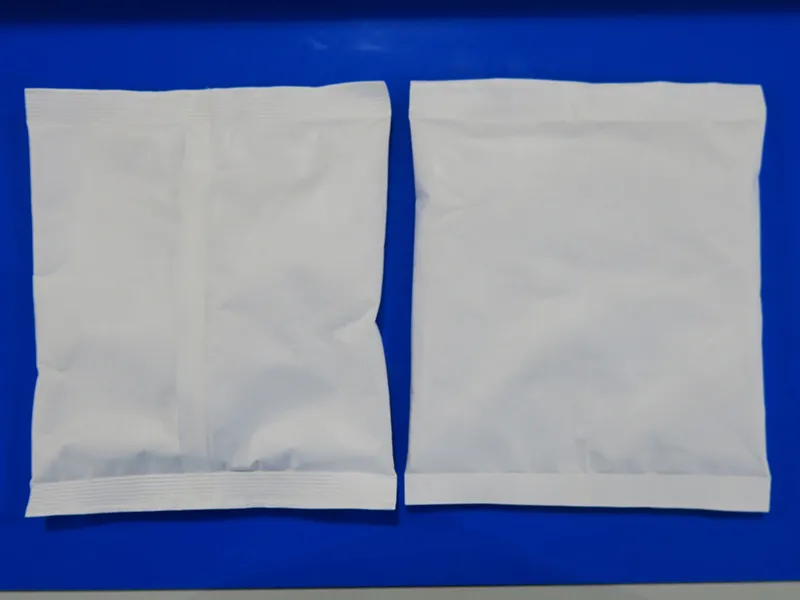

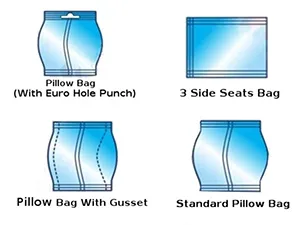

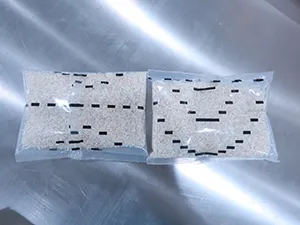

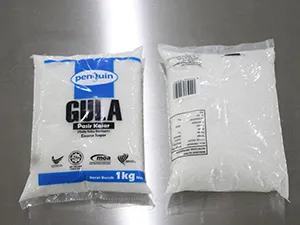

    Samples
    • VFFS Packaging Machine for Large Bags, Single Lane
    • VFFS Packaging Machine for Large Bags, Single Lane
    • VFFS Packaging Machine for Large Bags, Single Lane
    • VFFS Packaging Machine for Large Bags, Single Lane
    • VFFS Packaging Machine for Large Bags, Single Lane
    • VFFS Packaging Machine for Large Bags, Single Lane
    • VFFS Packaging Machine for Large Bags, Single Lane
    • VFFS Packaging Machine for Large Bags, Single Lane
    • VFFS Packaging Machine for Large Bags, Single Lane
