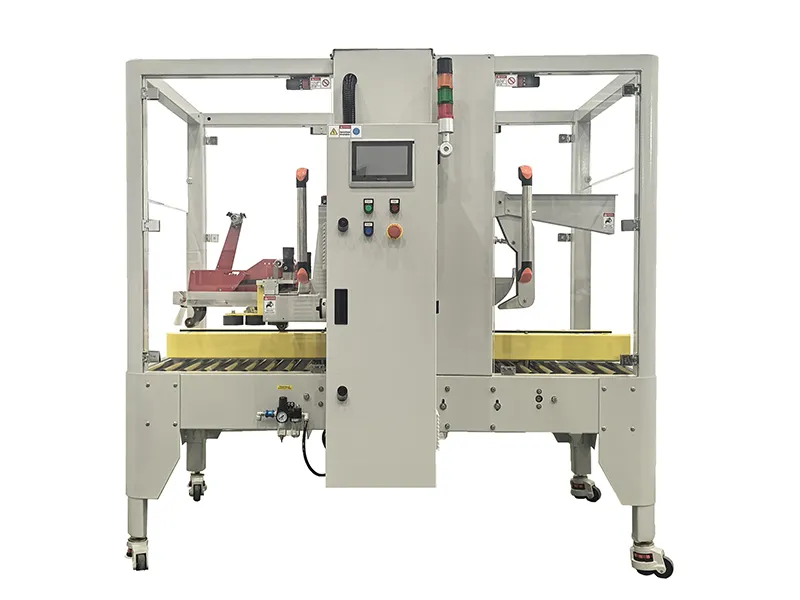

Semi-Automatic Case Sealer

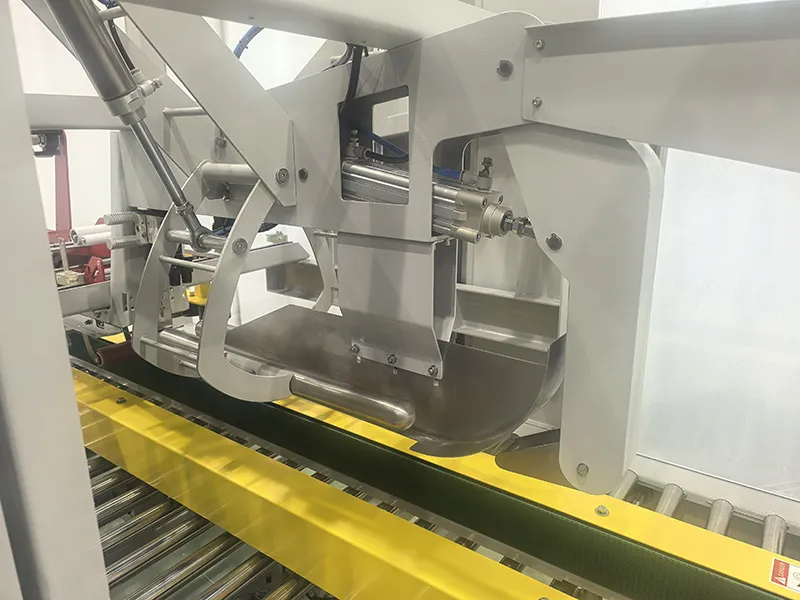

The machine utilizes a servo-driven system to automatically fold the top flaps of cartons and complete tape sealing in one sequence. It supports automatic top-flap folding, smooth flap insertion, and continuous sealing. The machine can operate independently or be placed alongside production lines and connected to upstream and downstream equipment. It is used in food, pharmaceutical, beverage, tobacco, household chemical, automotive, cable, and electronics industries.
Features
- Two adjustment modes: (1) direct parameter input and saving via the control panel, or (2) Ethernet data communication
- Carton sealing and cutting driven by servo-driven control
- Consistent sealing speed with fewer motion interruptions than pneumatic drive systems
- 10-inch HMI touchscreen interface

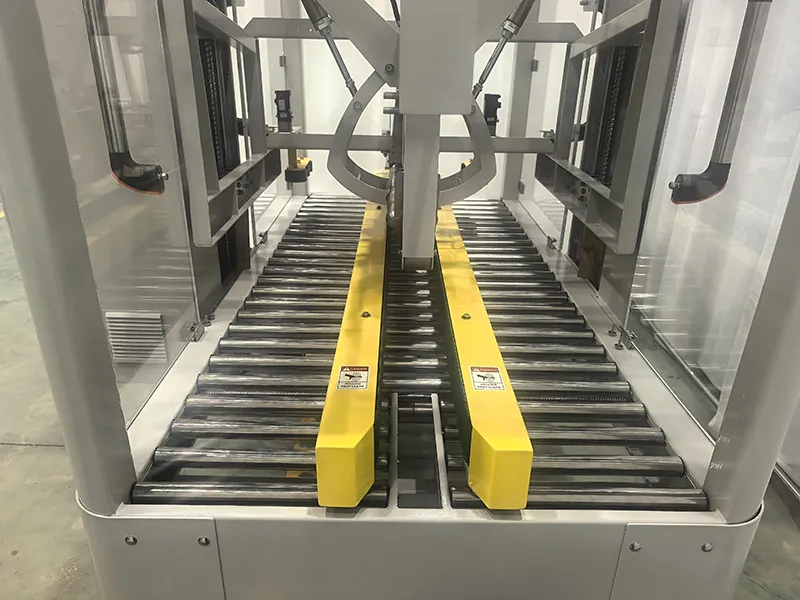

- Adjustable guides for box height and spacing
- Automatic stop triggered when the safety guard door is opened
Case Sealing
Specifications
- ModelAPFS-500S
- Carton Size RangeL200-500×W150-500×H150-500mm
- Power Supply1Ph/ 220V / 50-60Hz
- Power Rating2.0kW
- Air Pressure0.5-0.8 MPa
- Sealing Speed6-30pcs/min
- Adhesive TapeW48mm/60mm/75mm
- Machine Dimensions1930×1500×1870mm
