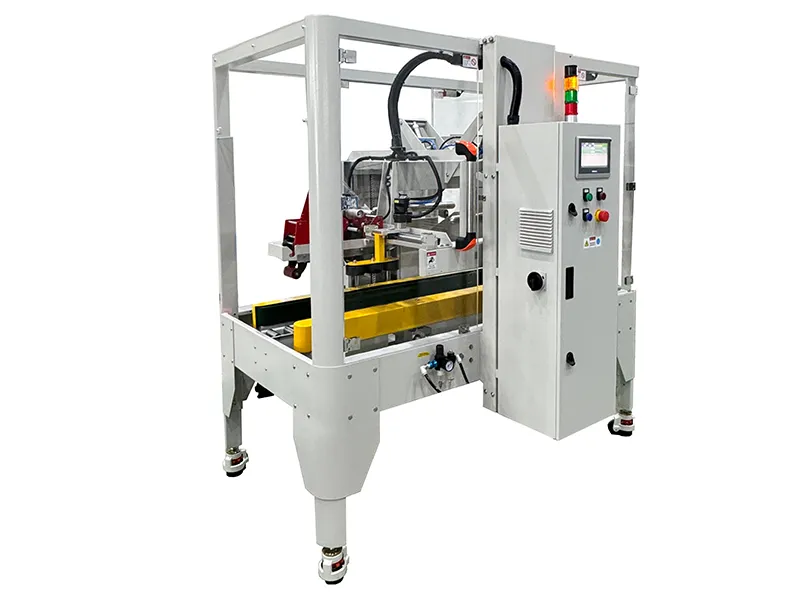

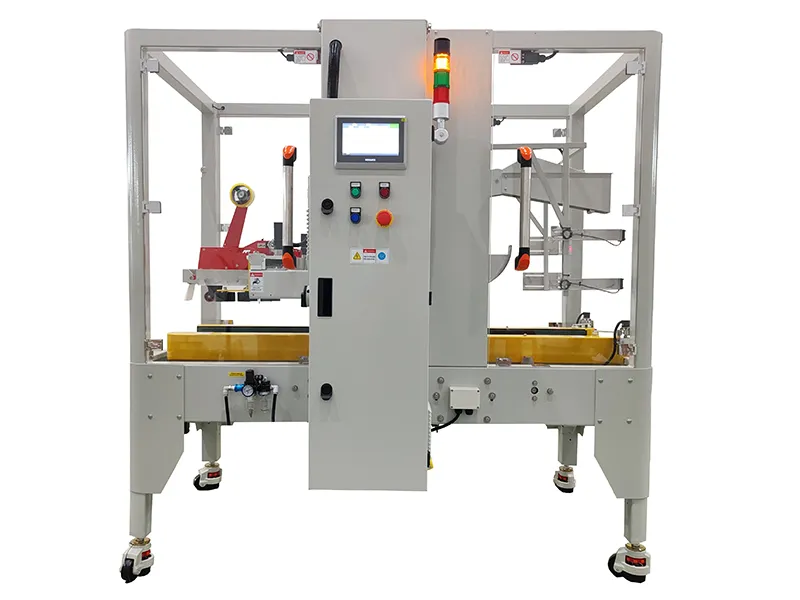

Automatic Case Sealer
The automatic case sealer is a servo-driven, self-adapting case sealing system that supports automatic folding and insertion of top carton flaps, followed by tape sealing in one continuous sequence. The machine operates independently or in coordination with other automated packaging equipment and is widely used in food, pharmaceutical, beverage, tobacco, household chemical, automotive, cable, electronics, and related industries.
Features
- Three adjustment modes:
(1) adaptive mode
(2) direct parameter input and saving via the control panel, or
(3) Ethernet data communication - Servo-driven case sealing
- Consistent sealing speed with fewer motion interruptions than pneumatic drive systems
- HMI touchscreen interface for operation and parameter control
Case Sealing
Specifications
- ModelAPFS-500SA
- Carton Size RangeL200-500×W150-500×H150-500mm
- Power Supply1Ph, 220V, 50/60Hz
- Power Consumption2.0kW
- Air Supply0.5-0.8 MPa
- Sealing Speed6-30pcs/min
- Tape SpecificationsW48mm/60mm/75mm
- Machine Dimensions1930×1500×1870
