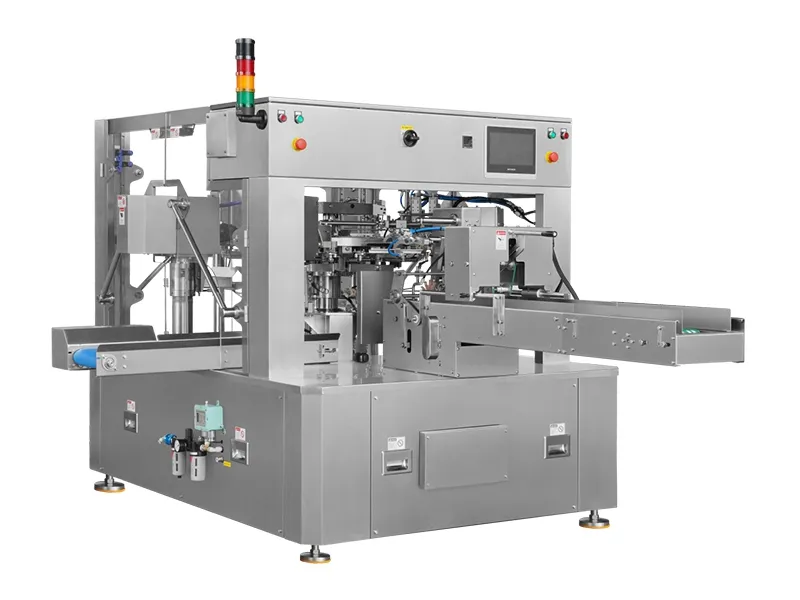

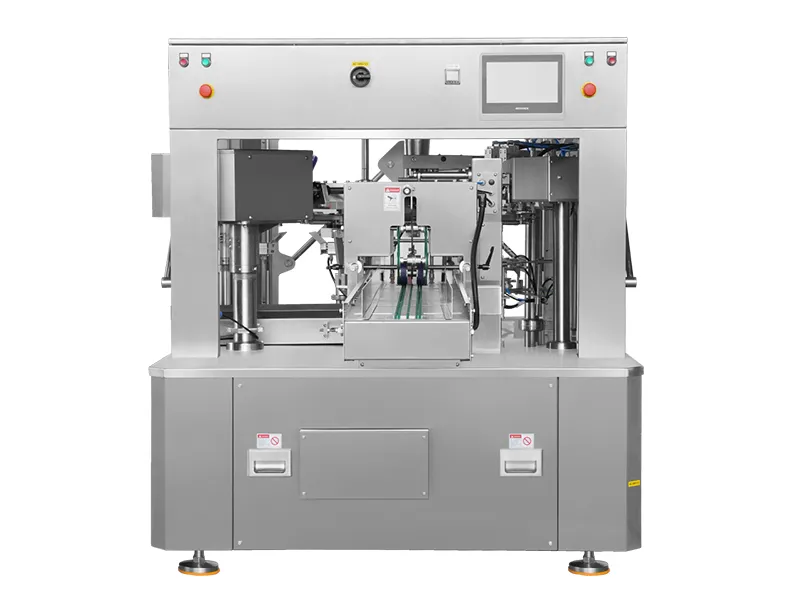

Rotary Premade Pouch Packaging Machine, Single Lane
Designed in single lane, the rotary premade pouch packaging machine features an intermittent rotary structure and is suitable for a range of materials, including granules, powders, liquids, and pastes. It supports various premade pouch formats, allows for rapid changeovers, and maintains a stable speed of operation.

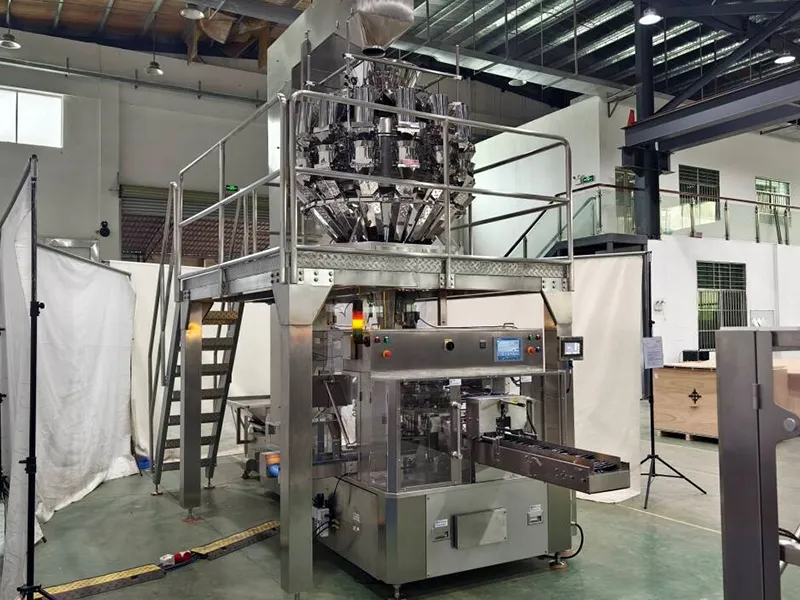

Rotary Premade Pouch Packaging Machine for Granules
- Model AP-8BT-G
- Max. Volume 2000 ml
- Pouch Length Range 150-350 mm
- Pouch Width Range 100-250 mm
- Packing Speed 20-45 pouches/min
- Pouch Feeding Method Infeed Conveyor Feeding / Magazine Feeding

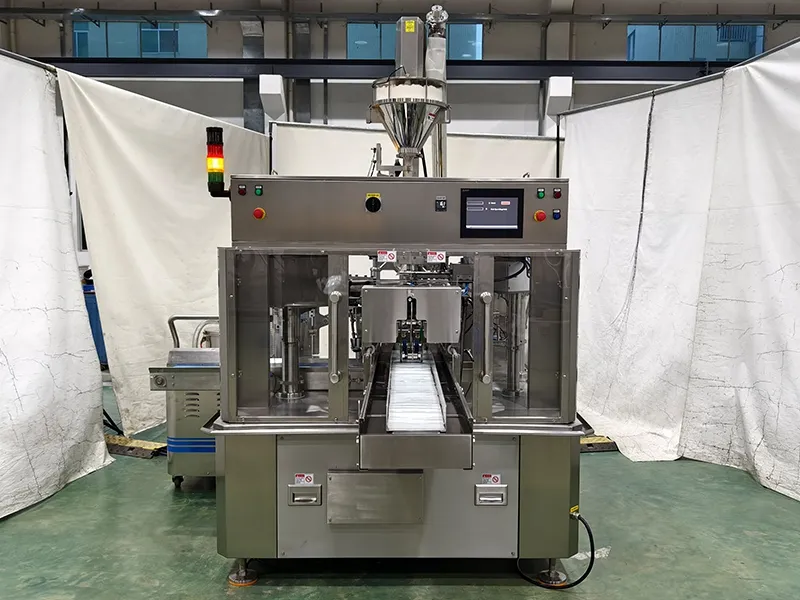

Rotary Premade Pouch Packaging Machine for Powders
- Model AP-8BT-P
- Max. Volume 2000 ml
- Pouch Length Range 150-350 mm
- Pouch Width Range 100-250 mm
- Packing Speed 20-45 pouches/min
- Pouch Feeding Method Infeed Conveyor Feeding / Magazine Feeding
Rotary Premade Pouch Packaging Machine for Liquids & Pastes
- Model AP-8BT-L
- Max. Volume 2000 ml
- Pouch Length Range 150-350 mm
- Pouch Width Range 100-250 mm
- Packing Speed 20-45 pouches/min
- Pouch Feeding Method Infeed Conveyor Feeding / Magazine Feeding
Features
- Intermittent 8-station rotary machine, designed for flat pouches and stand-up pouches
- Color touchscreen operation
- Intuitive display of error messages
- Hygienic design
- Multiple filling devices are available: screw weighing filler, cup filler, liquid filler, paste filler, and other specialized filling devices for unique products
Operation Stages
- Bag feeding
- Zipper pouch opening (optional)
- Stand-up pouch opening
- Top bag opening
- First filling
- Second filling (optional)
- Heat sealing
- Cooling and output
Features

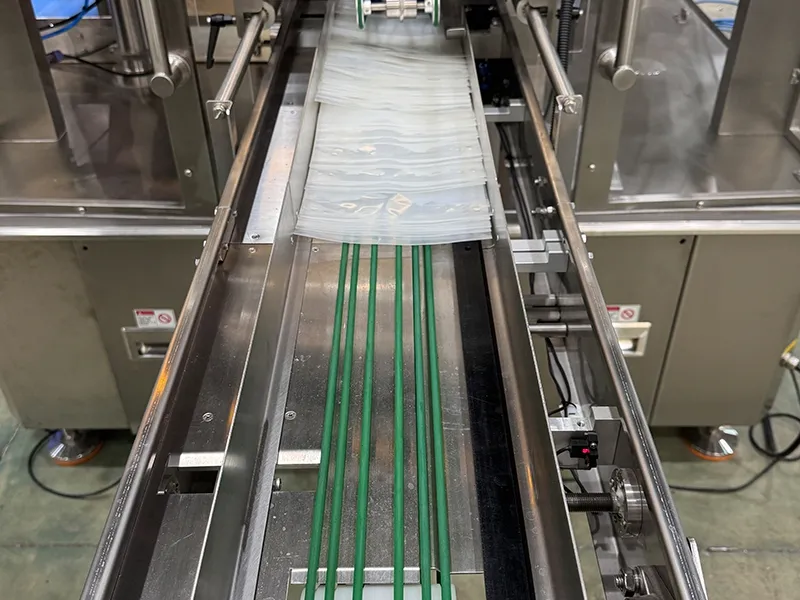

- Bag feeding conveyor

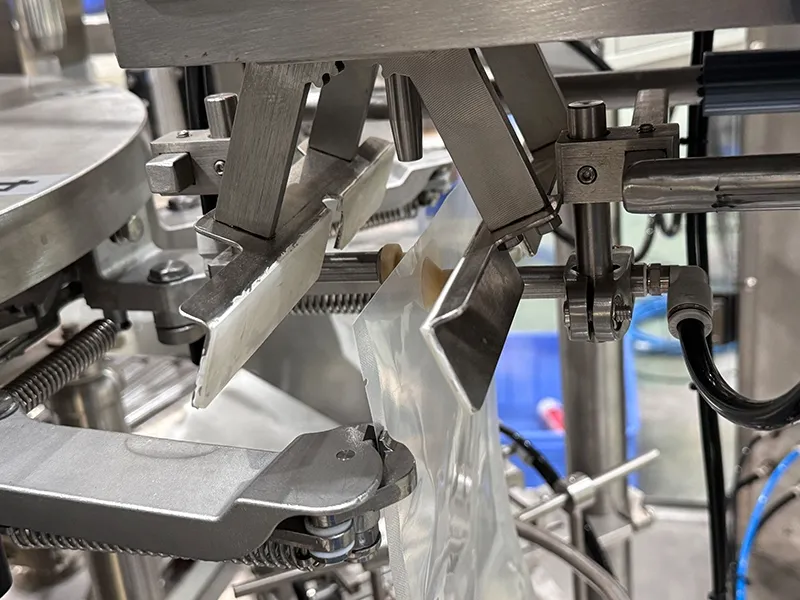

- Bag opener with detection device
- Digital temperature controller
- Full stainless steel machine frame
- PID with color touchscreen

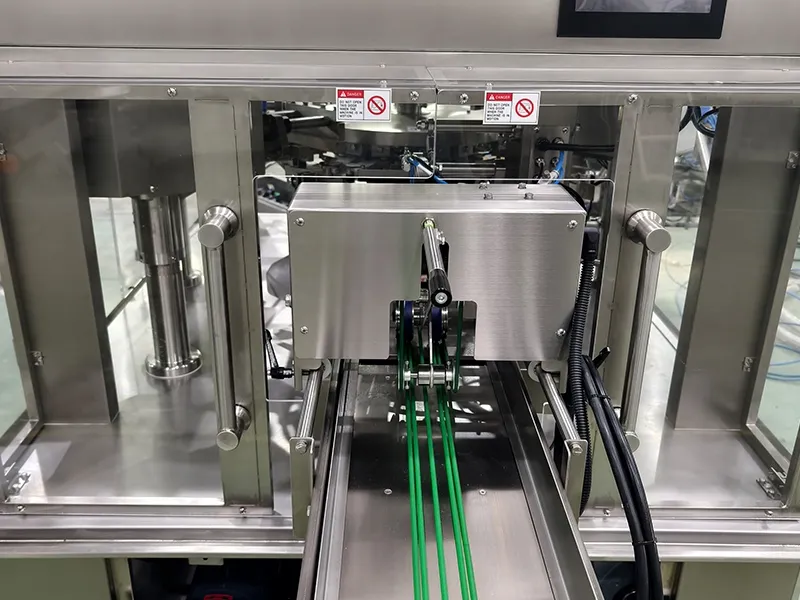

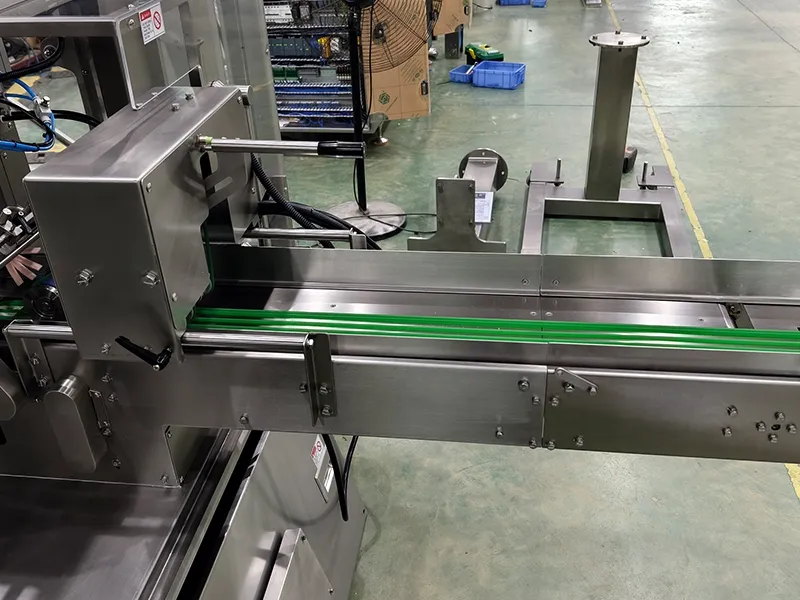

- Automatic discharge conveyor
Options
- Zipper pouch opening device
- Second filling station
- Safety door with a switch
- Date printer
- Vibrating and settling device
- Insertion device
- Nitrogen filling device
- Vacuum pre-sealing device
- Pre-sealing device for boilable pouches
- Curved discharge conveyor
- Cup-type granular filling head
