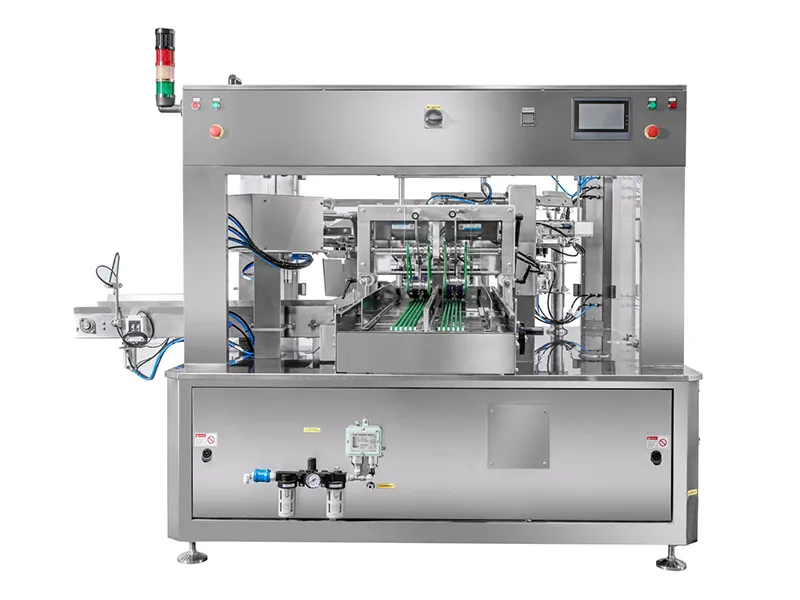

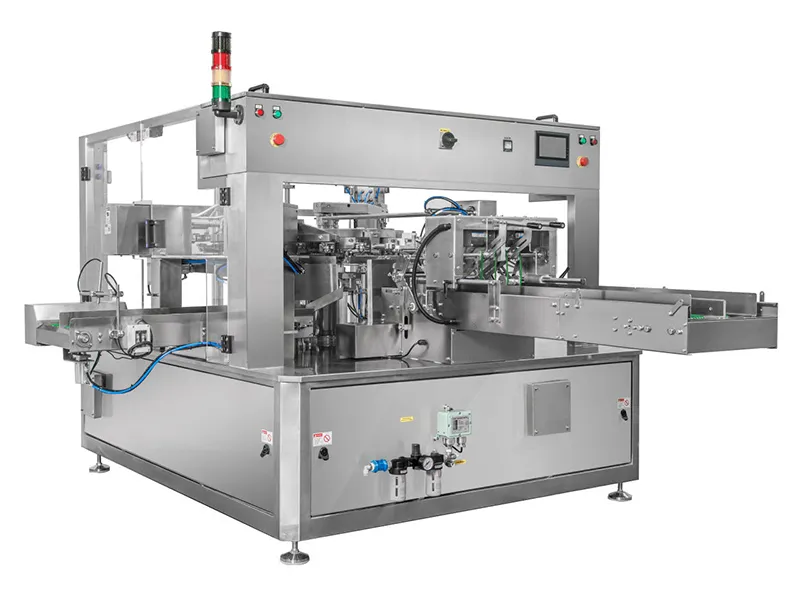

Rotary Premade Pouch Packaging Machine, Double Lane
Designed with double lane, rotary premade pouch packaging machine is suitable for automatic packaging of powders, granules, liquids, and other types of materials. It features a PLC with color touchscreen, combined with precise bag-opening detection, PID temperature control, and a 304 stainless-steel frame for stable and reliable operation. The dual-lane structure allows high-level packaging and supports multiple filling methods safeguarding a hygienic solution for pre-made pouches.
Features
- Panasonic PLC with color touchscreen
- Bag feeding conveyor
- Mechanism for bag opening with intelligent bag detection
- PID temperature controller
- The machine frame made of 304 stainless steel
- Color touchscreen
Applications
- Powders: flour, coffee, and other powder materials
- Granules: sugar, nuts, candies, seeds, etc. (using cup filler or multi-head weighing filler)
- Liquids/Pastes: water, beverages, honey, and other liquid or paste products
Operation Stages
- Bag feeding
- Coding and zipper opening (optional)
- Stand-up pouch opening
- Top bag opening
- First filling
- Second filling (optional)
- Heat sealing
- Cooling and output
Specifications
- ModelAP-8BT-170D
- Pouch Length Range130-350mm
- Pouch Width Range95-170mm
- Packing Speed50-100 pouches/min
- Power Supply3Ph, 220/380V, 50/60Hz; 4.5kW
- Machine DimensionsL3482×W2342×H1970mm
