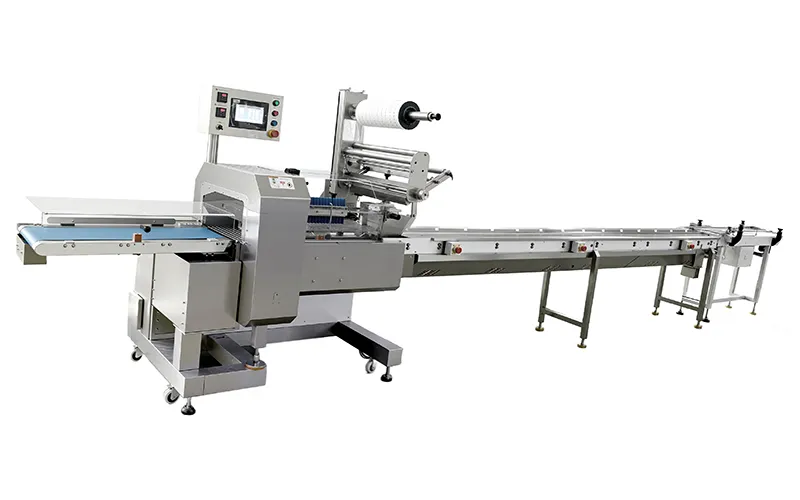

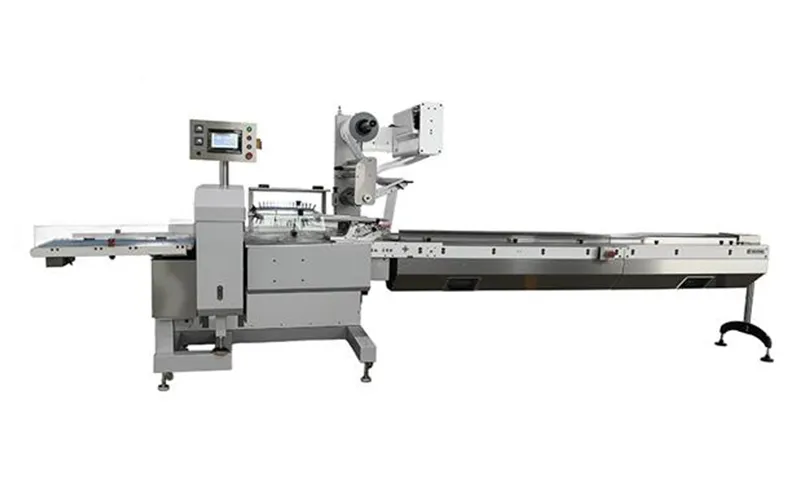

Horizontal Flow Wrapping Machine (Upper Film Feeding)
The horizontal flow wrapping machine is a packing machine featuring a servo-driven system for synchronized film pulling and product conveying that ensures rapid operation and size adjustments.
Optional Accessories
- Corner folding device
- Date printer
- Fixed-bag cutting unit
- Stainless steel machine frame
Applications
This packaging machine is suitable for regularly shaped, fixed products such as biscuits, bread, instant noodles, ice cream, mooncakes, gummies, soap, books and magazines, hardware, tapes, and pharmaceuticals.
Features
- Advanced PLC with color touchscreen is suitable for parameter setting and adjustment. It provides intuitive production display and includes automatic fault alarm, self-stop, and self-diagnosis functions
- Servo-driven system synchronizes film pulling speed with conveyor speed
- Cross-sealing speed can be adjusted manually with a handwheel when changing bag length
- Pneumatic switch controls the film roll opening
- Equipped with safety protective cover, compliant with CE standards
- Optional accessories such as film color tracking, date coding, and automatic feeding systems are available
Specifications
| Model | ||
| Packing Speed | Up to 100 pcs/min. | Up to 100 pcs/min. |
| Max. Film Width | 600mm | 500mm |
| Max. Film Roll Diameter | 350mm | 350mm |
| Max. Packing Height | 100mm | 100mm |
| Max. Packing Width | 280mm | 200mm |
| Min. Packing Length | 60mm | 76mm |
| Max. Packing Length | 800mm | 564mm |
| Air Supply | 6bar | 6bar |
| Power Supply | 220-380V, 1ph | 380-400V, 3ph |
| Total Power | 3.8kW | 3.0kW |
