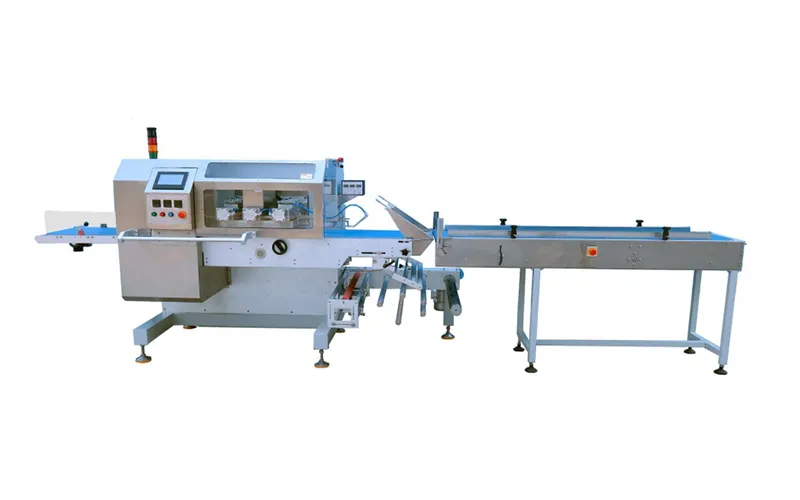

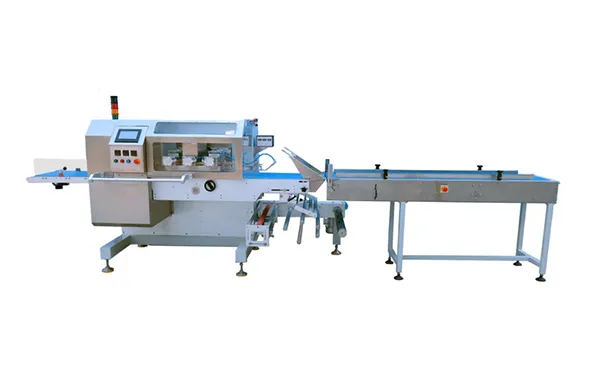

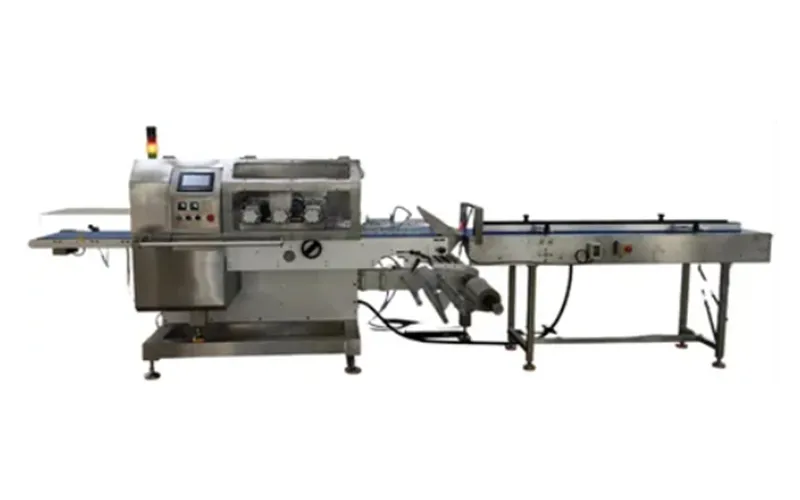

Horizontal Flow Wrapping Machine (Lower Film Feeding)
The horizontal flow wrapping machine is a flow pack machine featuring a downward film-feeding structure with a triple servo system that enables product conveying, bag length control, and continuous sealing.
Applications
Low film feeding horizontal flow wrapping machine is suitable for packaging a variety of solid and regularly shaped products, including food items such as biscuits, bread, instant noodles, ice cream, mooncakes, and gummies, as well as other items like shaped soaps, pharmaceuticals, notebooks, pencil cases, adhesive tapes, and medications.
Features
- The machine frame is made of steel while covers and product-contact parts are made of stainless steel
- Electrical and pneumatic systems for easy inspection, maintenance, or replacement of components

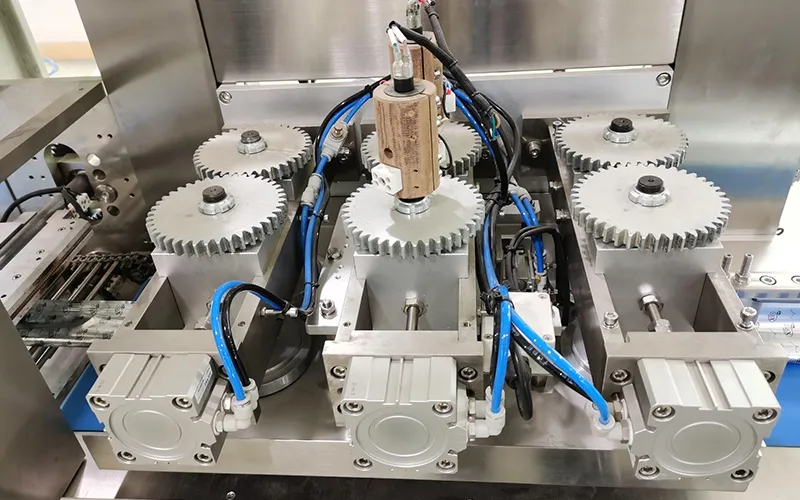

- Three sets of vertical sealing rollers for secured seals
- Upper rotating sealing jaws perform rotary heat sealing and cutting of the bag’s horizontal seal for high-speed continuous packaging
- Film roll stand expand shaft to prevent slippage and improve film change
- Three brushless servo motors independently control film feeding, sealing, and cutting, ensuring bag length and low noise
- High-resolution touchscreen is integrated with control panel
- Feeding conveyor with nylon pushers
Specifications
| Model | AHP-700BB-S4 |
| Bag Length | 50-600mm |
| Bag Width | 200-350mm |
| Packing Speed | 20-80pcs/min |
| Power Supply | 220/380V, 50/60HZ |
| Total Power | 3.6kW |
| Max. Film Width | 750mm |
| Dimensions | L4706×W1125×H1367mm |
Details
-

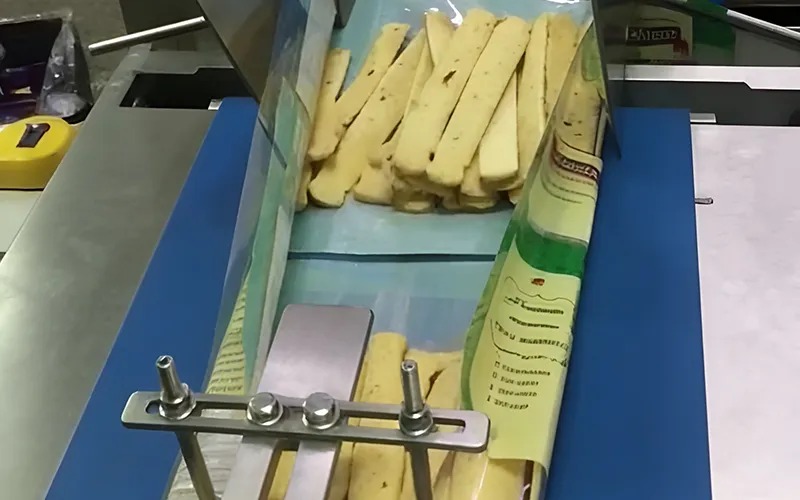

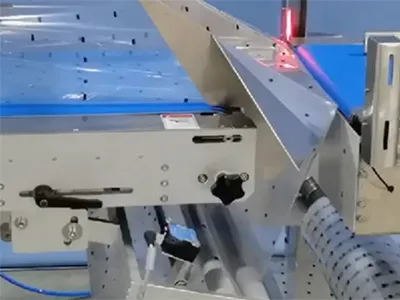

Film Feeding and Bag Forming Mechanism
