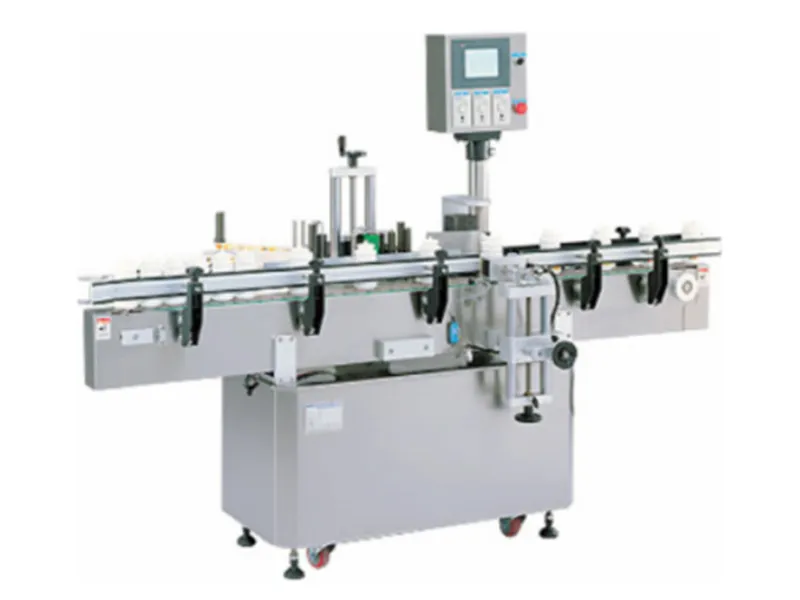

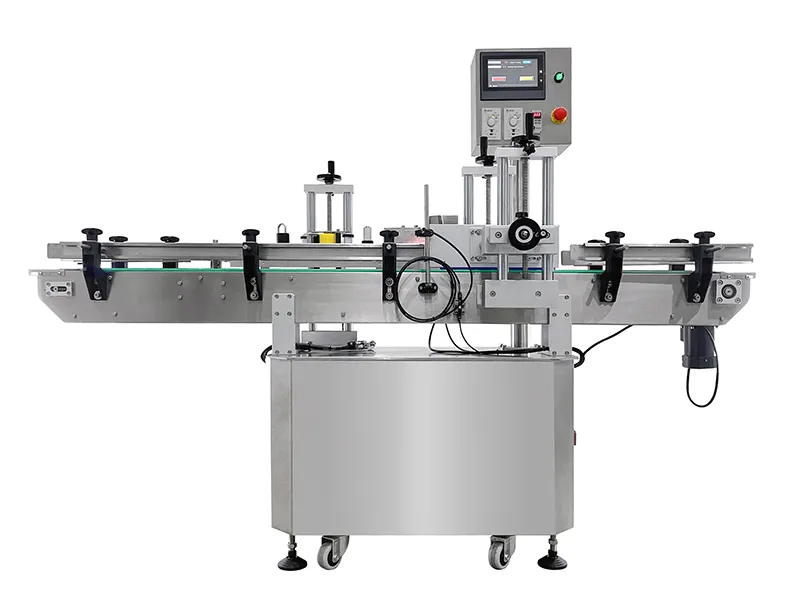

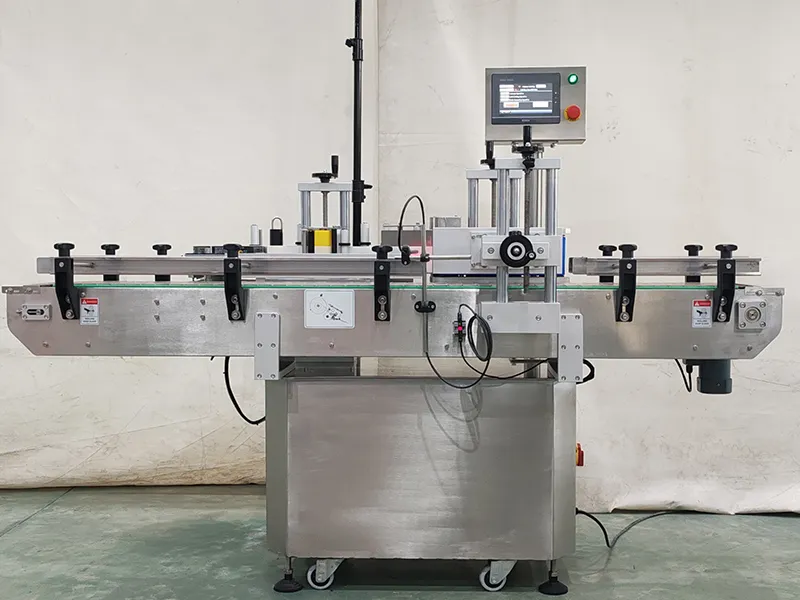

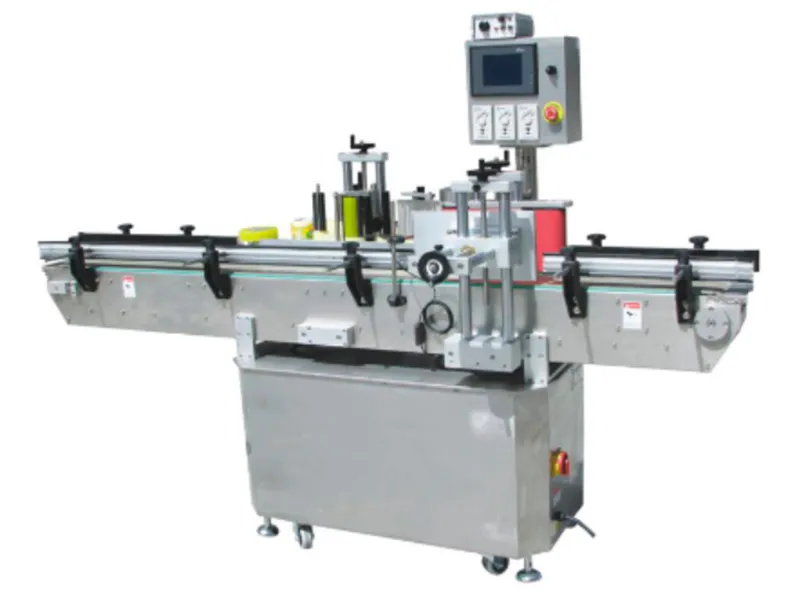

Automatic Round Bottle Labeling Machine
Applications

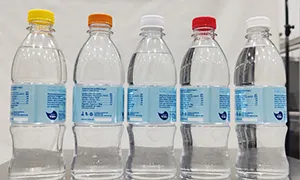

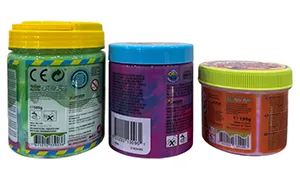

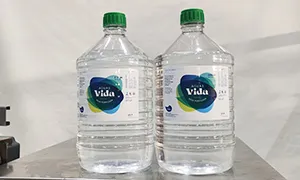

The machine is designed for labeling round bottles or similar products, supporting partial or full-wrap label application.
Features
- The machine frame is made of 304 stainless steel
- PLC + LCD touchscreen control system
- Labeling accuracy within ±1 mm
- Servo-driven labeling head synchronized with the conveyor and top pressure belt
- Equipped with a bottle separator
Specifications
| Model | ALB-510 |
| Label Height / Width | A: 10-110mm; C: 10-170mm |
| Label Length | 10-300mm |
| Product Diameter / Thickness | 25-100mm |
| Labeling Speed | 12-35m/min |
| Label Roll I.D. / O.D. | 76mm / Max. 360 mm |
| Machine Dimensions | L2010×W1110×H1550mm |
| Options | Coding Device, Transparent Label Sensor |

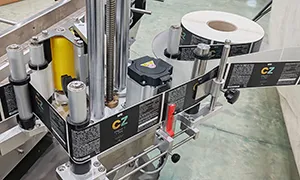

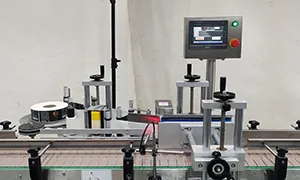

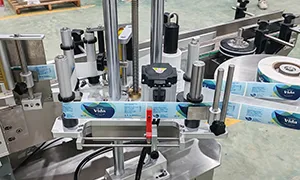

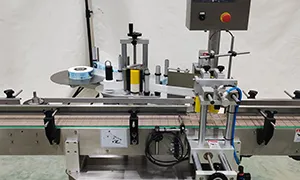

Details
