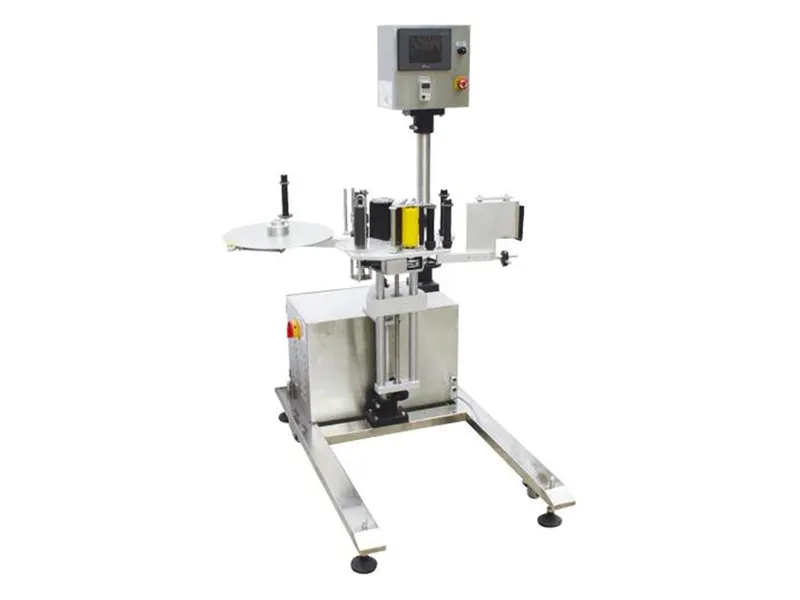

Automatic Inline Labeling Machine (for Flat Surfaces)
ALB-212
- ModelALB-212
- Label Height / WidthA: 10-110mm, C: 10-170mm
- Label Length10-250mm
- Product Diameter / Thickness15-160mm
- Labeling Speed12-35m/min
- Label Roll I.D. / O.D.76mm / Max. 360 mm
- Machine DimensionsL1450×W700×H1550mm

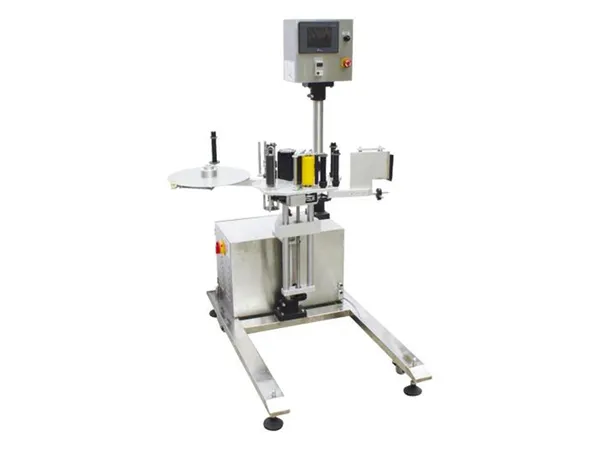

ALB-213
- ModelALB-213
- Label Height / WidthA: 10-110mm, C: 10-170mm
- Label Length10-250mm
- Product Diameter / Thickness15-160mm
- Labeling Speed12-35m/min
- Label Roll I.D. / O.D.76mm / Max. 360 mm

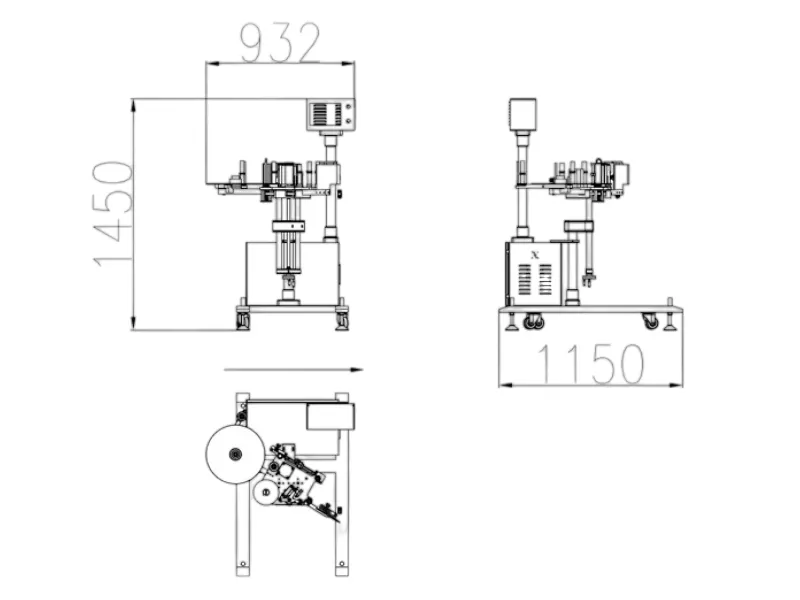

- Machine DimensionsL1450×W700×H1550mm
Features
- The machine frame is made of 304 stainless steel.
- PLC + LCD touchscreen control panel.

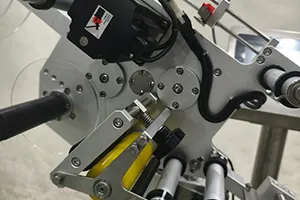

- Servo-driven labeling head.
- Machine can be placed alongside production lines.
- Supports automatic labeling on products in motion.
- Conveyor speed synchronization can be achieved by installing a speed encoder on the client’s conveyor roller or by manual speed input.
Details
Applications

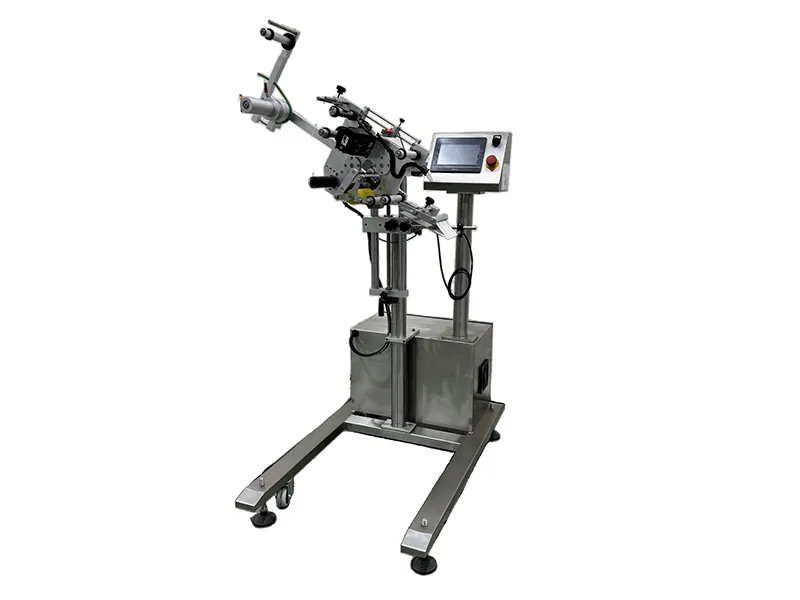

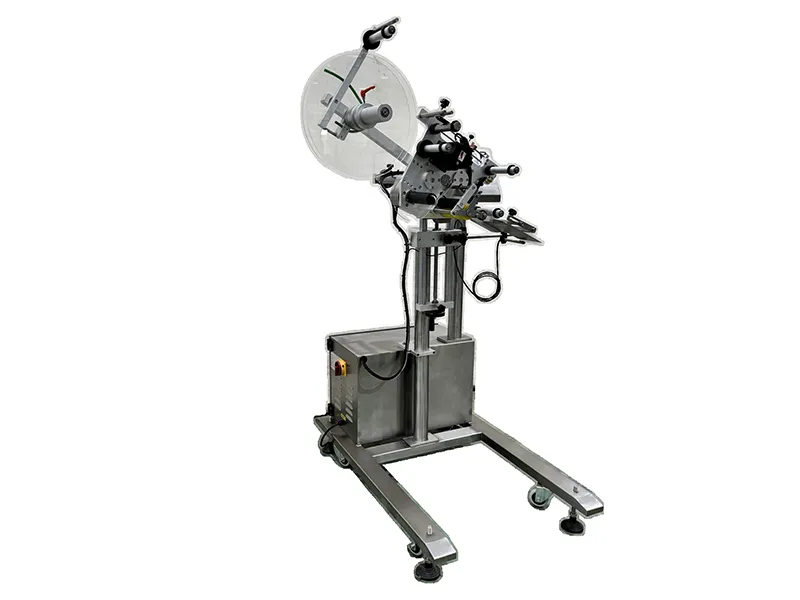

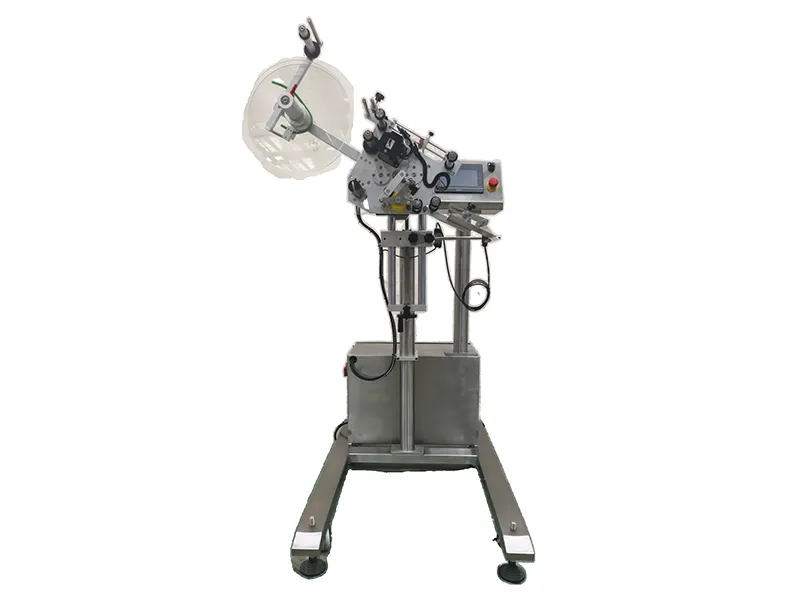

ALB-212
The automatic inline labeling machine is designed for flat-surface labeling of products on production lines.
ALB-213
The automatic inline labeling machine is designed for side flat-surface labeling of products on production lines.
