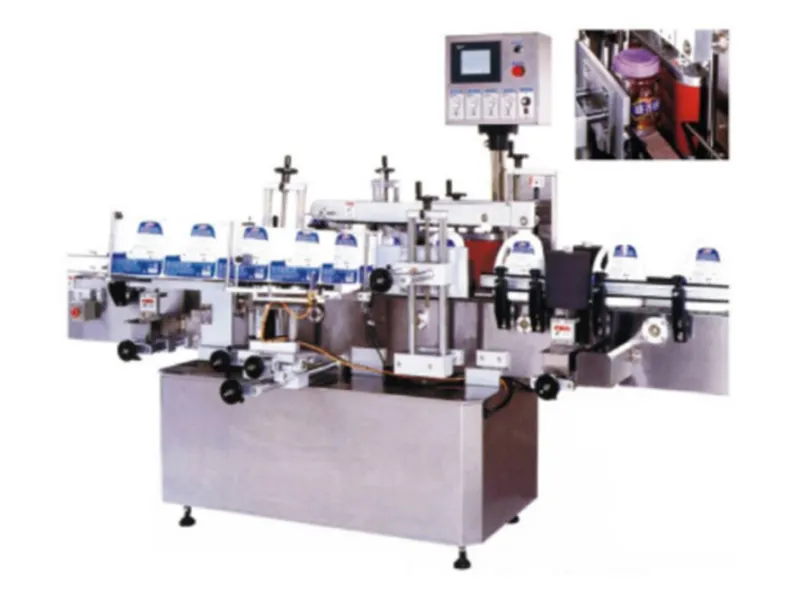

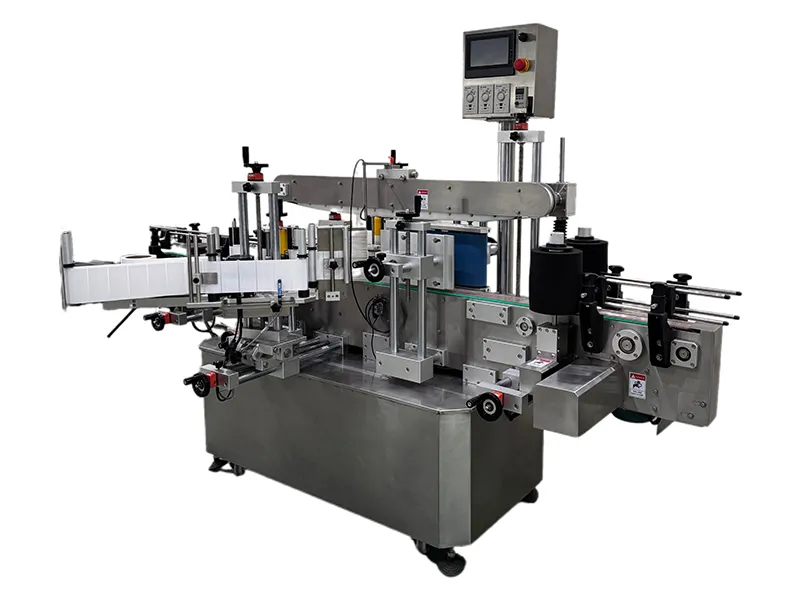

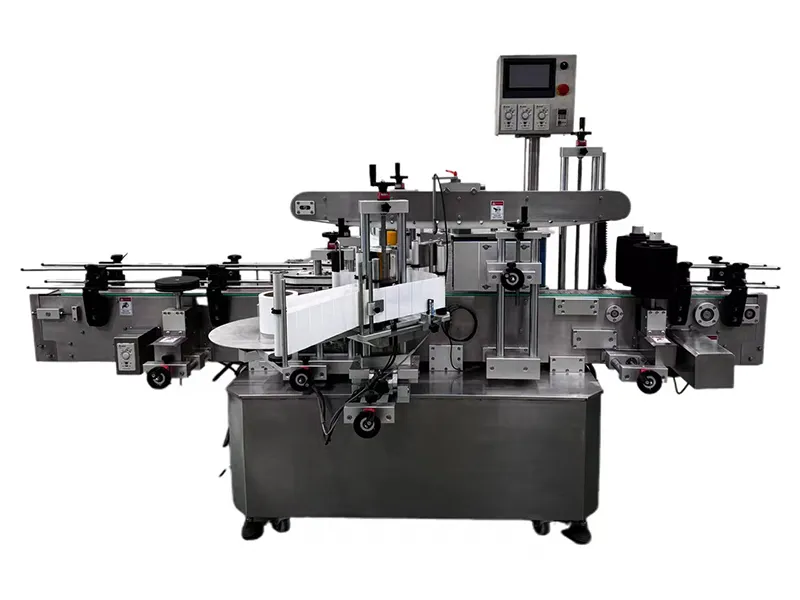

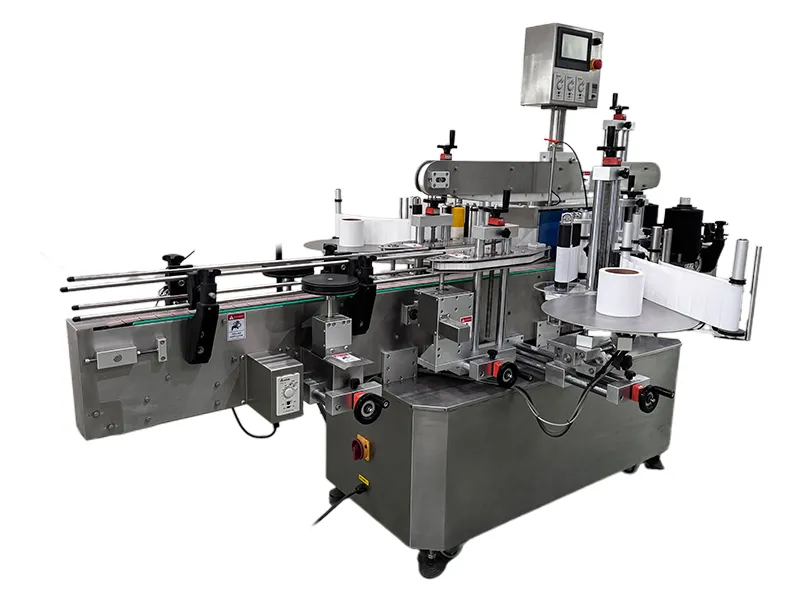

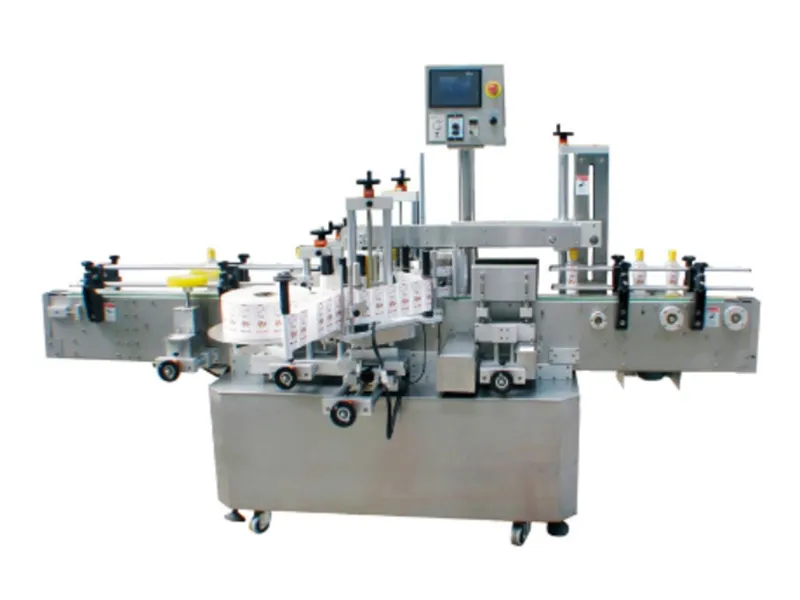

Automatic Front and Back Labeling Machine
Applications

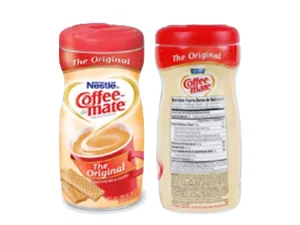

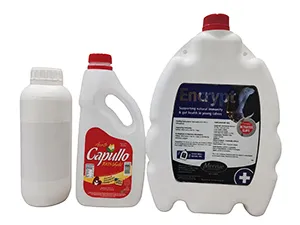

Suitable for front and back labeling on flat, square, or oval products.
Features
- 1.The machine frame is made of 304 stainless steel
- PLC + LCD touchscreen control panel
- Labeling accuracy within ±1 mm

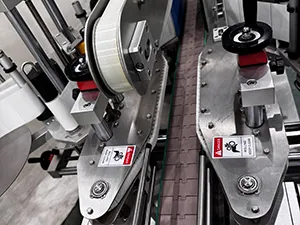

- Servo-driven labeling head synchronized with the conveyor and top pressure belt

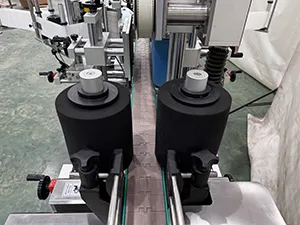

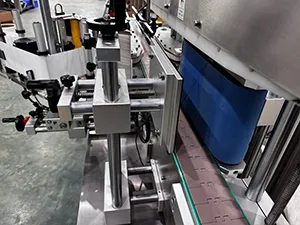

- Dual sponge side-press system for smooth, wrinkle-free label application
- Equipped with a bottle separator
Specifications
| Model | ALB-620 |
| Label Height / Width | A: 10-110mm, C: 10-170mm, D:10-220mm |
| Label Length | 10-250mm |
| Product Diameter / Thickness | 25-100mm (Non-standard equipment available upon request) |
| Labeling Speed | 12-25m/min |

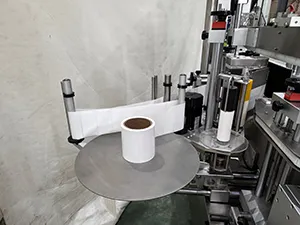

| Label Roll I.D. / O.D. | 76mm / Max. 360 mm |
| Machine Dimensions | L2750×W1400×H15mm |
| Options | Coding Device, Transparent Label Sensor |

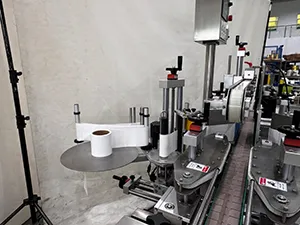

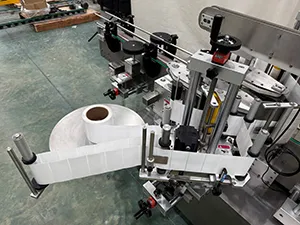

Details
