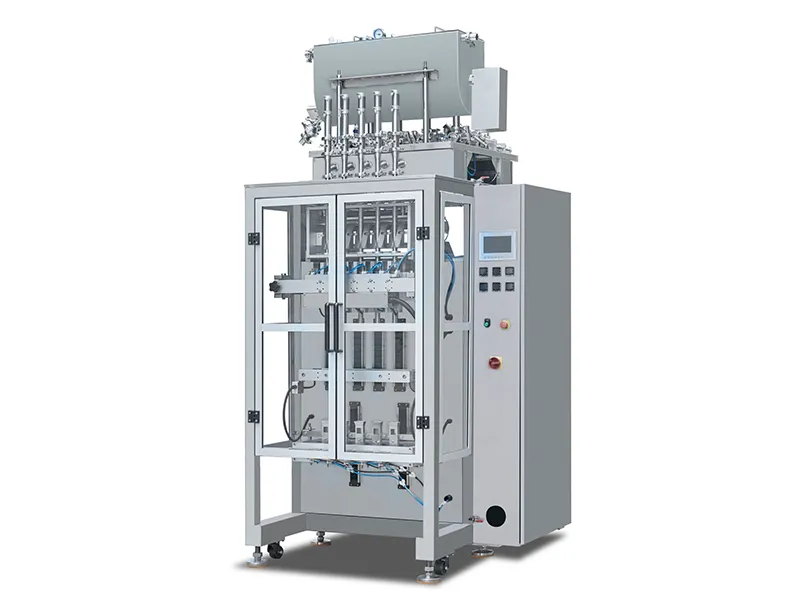

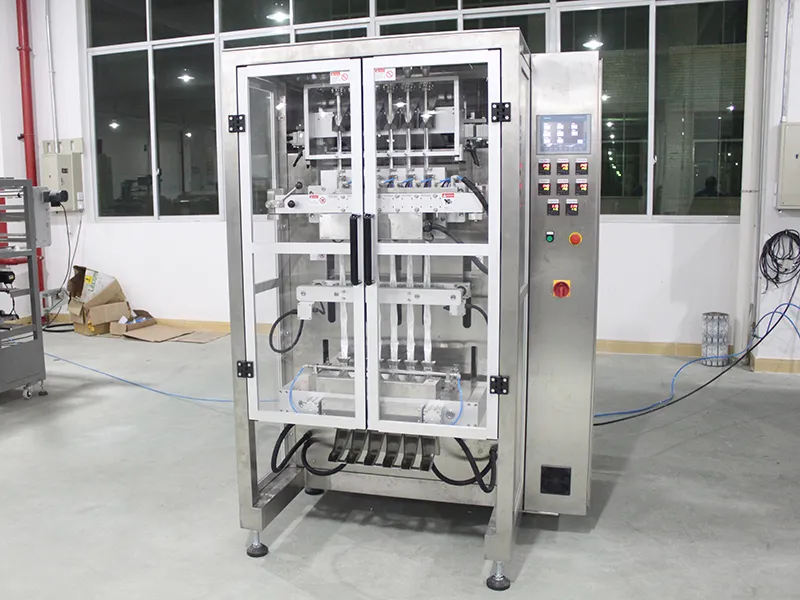

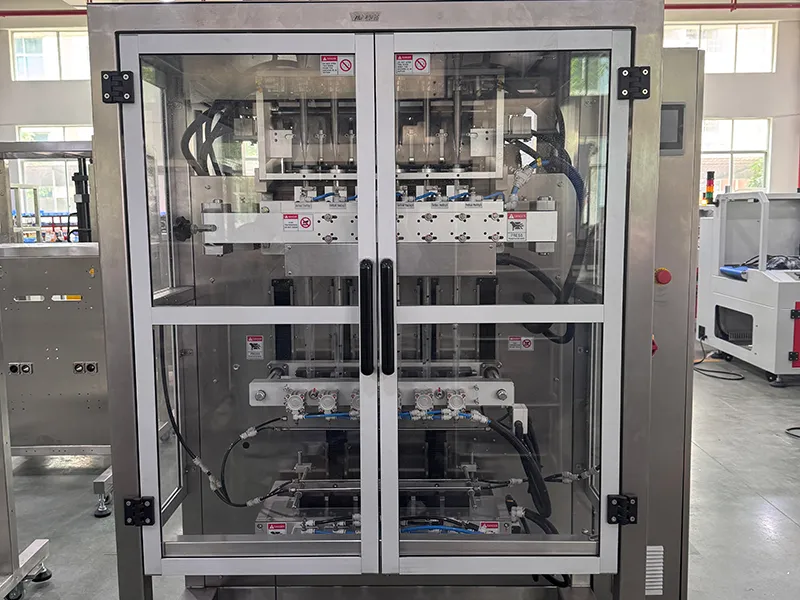

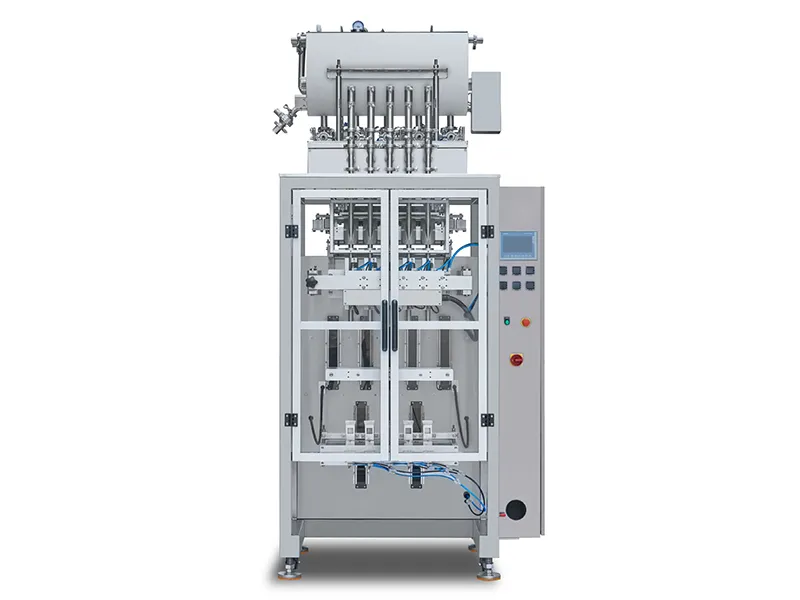

Vertical Form Fill Seal Machine (VFFS), Multi-Lane
The stick pack VFFS machine is a vertical machine capable of metering, filling, bag forming, sealing, and cutting multiple stick packs. It features servo-driven film pulling, high-sensitivity photoelectric sensors, and PID temperature control, ensuring precise bag formation.

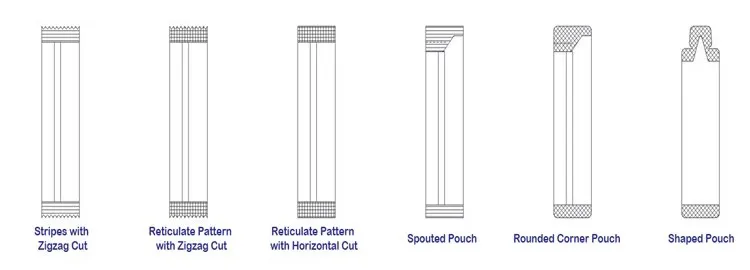

Bag Type

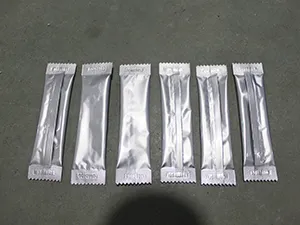

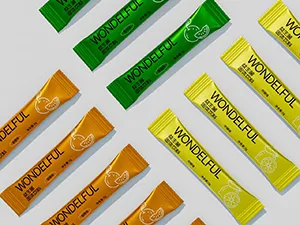

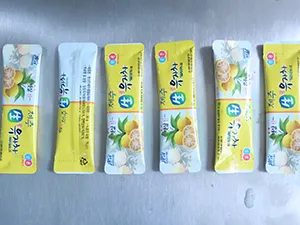

- Stripes with zigzag cut
- Reticulate pattern with zigzag cut
- Reticulate pattern with horizontal cut
- Spouted pouch
- Rounded corner pouch
- Shaped pouch
Features
- The machine can automatically complete multi-lane products measuring, feeding, filling and bag forming, date printing, bag sealing, cutting, and hole punching as an option
- Servo-driven film pulling system
- High-sensitivity photoelectric sensors can automatically trace color mark
- PLC with control touchscreen can set and change the packing parameters. Daily production output and self-diagnostic machine error can be viewed directly from the screen
- PID temperature control monitors temperature within ±1℃
Applications

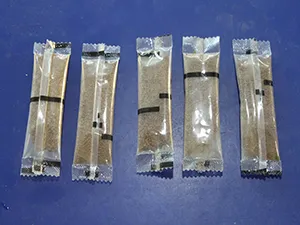

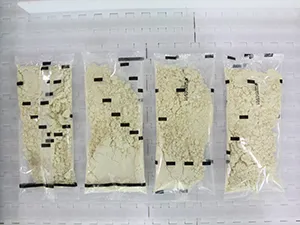

Power, liquid, cream and granule like sugar, coffee packed in a long narrow pouch. Packing for different materials can be accomplished by different dosing units.
Specifications
| Model | |||
| Bag Length (mm) | 70-200 | 70-200 | 70-200 |
| Bag Width (mm) | 16-50 | 16-35 | 16-25 |
| Film Width(mm) | Max.480 | Max.480 | Max.480 |
| Lanes No. | 4 | 6 | 8 |
| Speed (bag/min) | 120-180 | 180-270 | 240-360 |
| Sealing Format | Back Seal or Envelope Seal | ||
* For powder filling, the machine utilizes an auger filler system, the minimum stick pack width is 25 mm.
