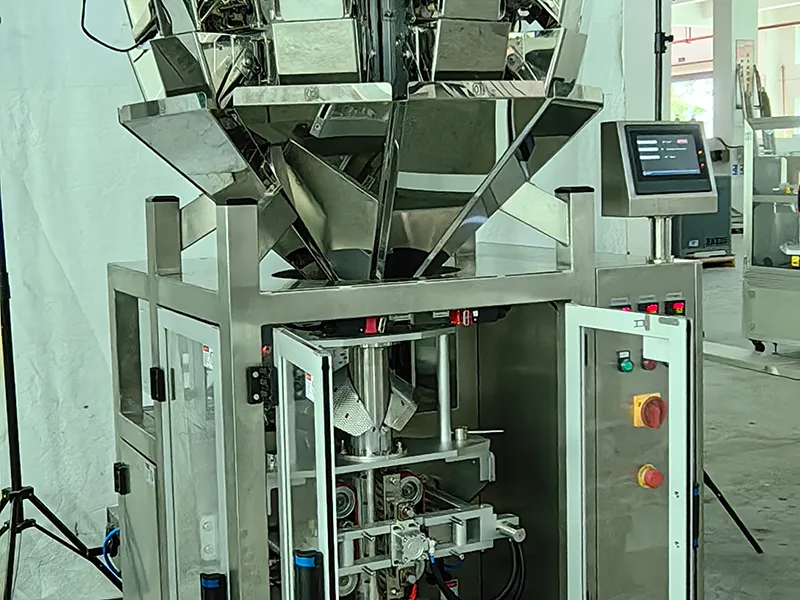

Vertical Form Fill Seal Machine with 10-Head Multihead Weigher
  • Vertical Form Fill Seal Machine with 10-Head Multihead Weigher
  • Vertical Form Fill Seal Machine with 10-Head Multihead Weigher
  • Vertical Form Fill Seal Machine with 10-Head Multihead Weigher
  • Vertical Form Fill Seal Machine with 10-Head Multihead Weigher
  • Vertical Form Fill Seal Machine with 10-Head Multihead Weigher

    • Vertical Form Fill Seal Machine with 10-Head Multihead Weigher

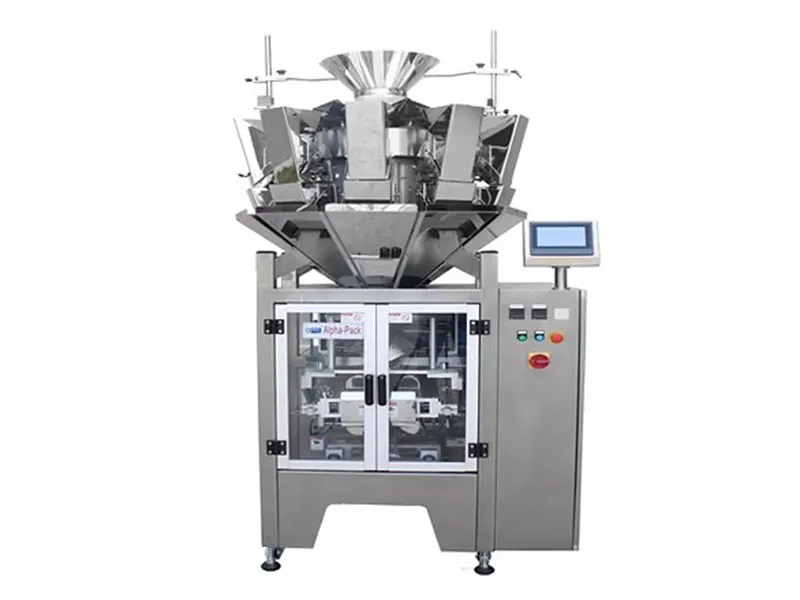

    The vertical form fill seal machine with multihead weigher enables fully-automated weighing, product discharge, bag forming, sealing, punching, and date printing.

    Applications
    • Suitable for dry granular food products and similar materials, including snack foods, puffed foods, seeds, dried fruits, coffee beans, tea, confectionery, baked goods, rice, nuts, chili, pasta, pet food, and other comparable solid granular products.
    • Applicable to non-food products, including metal components such as nuts, screws, washers, and other solid items.
    Leave a Message
    • Vertical Form Fill Seal Machine with 10-Head Multihead Weigher
    • Vertical Form Fill Seal Machine with 10-Head Multihead Weigher
    • Vertical Form Fill Seal Machine with 10-Head Multihead Weigher
    • Vertical Form Fill Seal Machine with 10-Head Multihead Weigher
    Options
    • Servo-driven horizontal sealing unit
    • Hole-punching module for pouch openings
    • Box-pouch forming module
    • Easy-tear notch device
    • Air-release valve or sponge-based exhaust module
    • Date printer
    • Nitrogen flushing system
    • Discharge conveyor
    • Pouch edge-cutting function

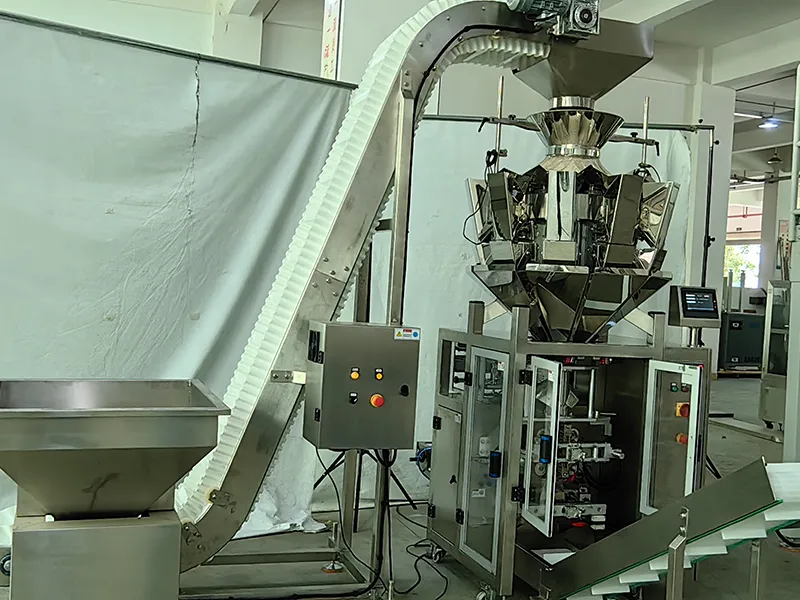

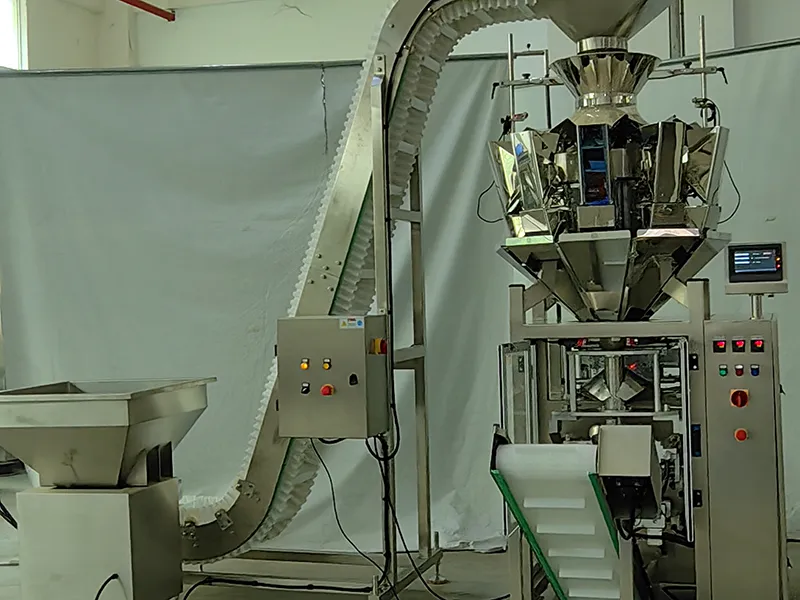

    • Automatic replenishment elevator

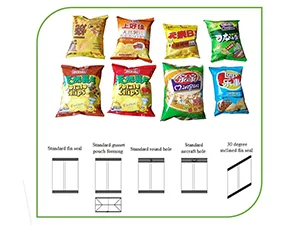

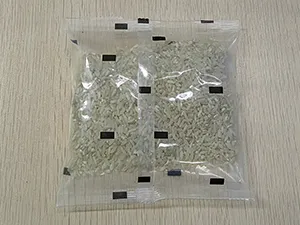

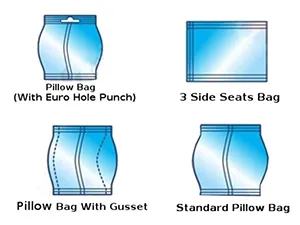

    Bag Type
    • Vertical Form Fill Seal Machine with 10-Head Multihead Weigher
    • Vertical Form Fill Seal Machine with 10-Head Multihead Weigher
    Specifications
    Model PMW-420E
    Touch Screen 7-inch color touch screen
    Weighing Heads 10 heads
    Weighing Hopper Volume 1600 ml
    Weighing Range 10-800g
    Weighing Accuracy 0.5-1.5g
    Max. Film Width 420mm
    Bag Width Range 80～200mm
    Bag Length Range 80-180mm (For bag lengths over 180 mm, double film pull is required.)
    Film Pulling System Servo motor
    Horizontal Sealing Drive Pneumatic cylinder
    Max. Speed 60 bags/min
    Power Supply 4.5kW, 220V 50/60Hz

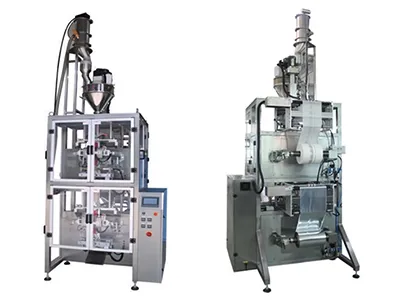

    Vertical Packaging Machines
