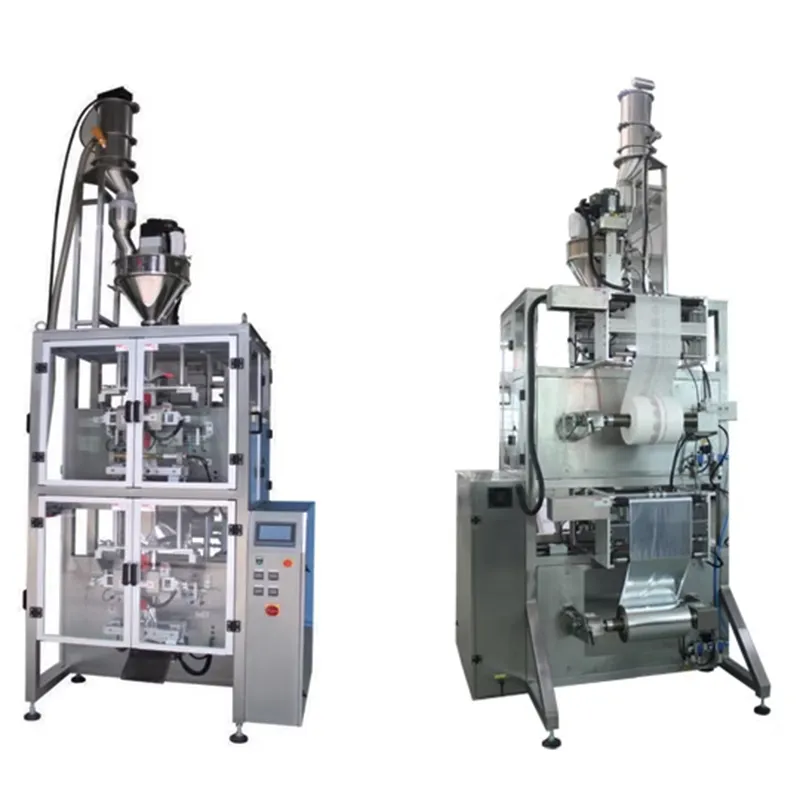

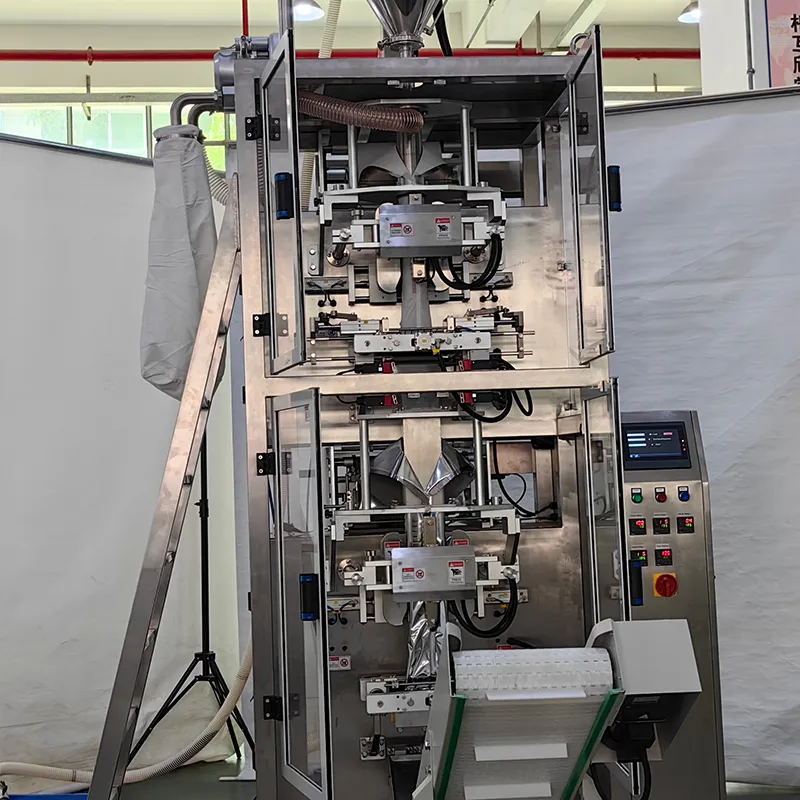

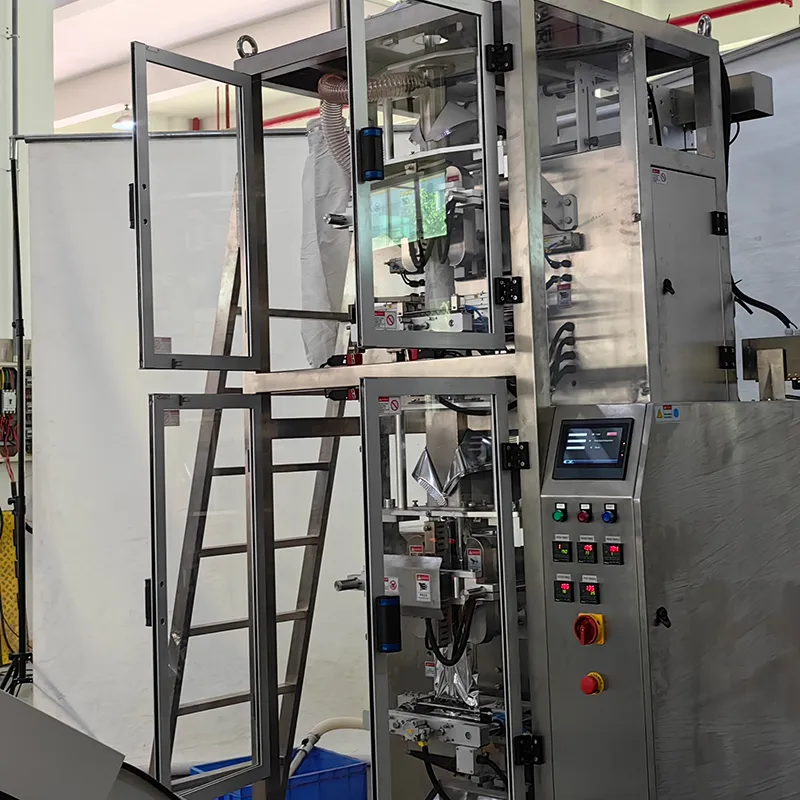

Dual-Bag VFFS Packaging Machine (Inner & Outer Bag)
The dual-bag VFFS packaging machine uses a vertical form fill seal structure to automatically form, meter, fill, seal, and cut both inner and outer bags on the same machine, enabling dual-layer packaging in a single process.
Applications

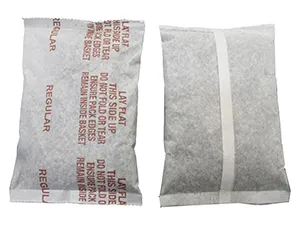

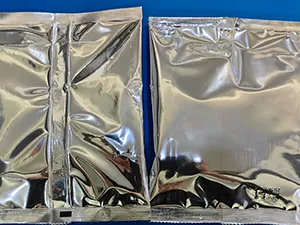

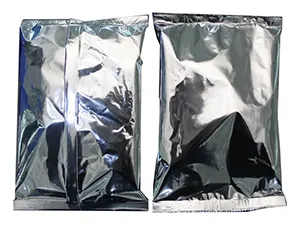

The automatic vertical pouch packaging machine for inner and outer bags is suitable for packaging of tea, coffee, powdered beverages, spices, and similar products. The outer pouch uses aluminum-layer composite film, enabling inner and outer packaging. The process is completed on one machine, reducing time and space requirements.
Features
- Automates feeding, metering, filling, bag forming, sealing, cutting, and production date printing
- Servo-driven dual-belt film pulling system
- High-sensitivity photoelectric sensors for printed mark tracking and positioning
- PLC with color touchscreen features parameter setup and adjustment
- Automatic error alarm, stop, and self-diagnosis functions
- PID digital temperature control with sealing deviation within ±1°C
Optional Accessories
- Corner folding device
- Date printer
- Fixed-bag cutting unit
- Stainless steel machine frame
Specifications
| Model | ||
| Inner Bag Width (mm) | 80-160 | 80-160 |
| Inner Bag Length (mm) | 80-160 | 80-160 |
| Outer Bag Width (mm) | 120-200 | 120-200 |
| Outer Bag Length (mm) | 120-200 | 120-200 |
| Film Width (mm) | 420 | 420 |
| Filling Device | Powder auger filler | Granule volumetric cup filler |
| Max. Speed | 10-40 ppm | 10-40 ppm |
